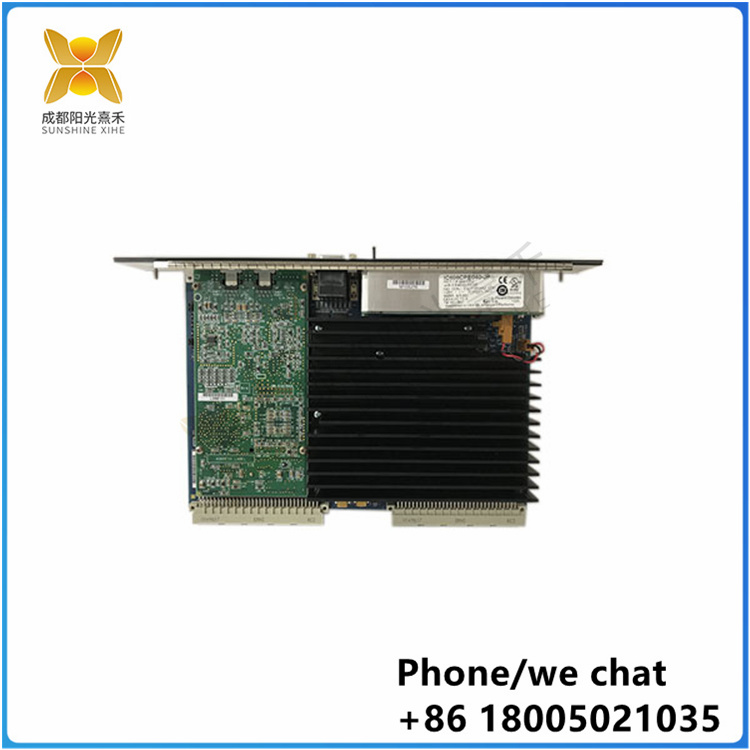

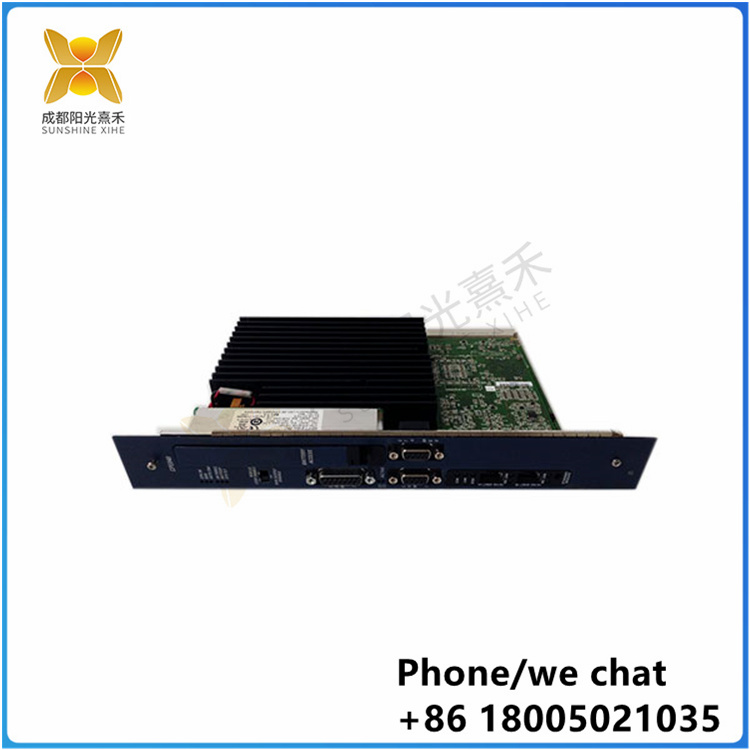

The IC698CPE040 is a central processing unit (CPU) module manufactured by General Electric (GE) and commonly used in industrial automation and control systems. Here are some of the key specifications and features of the module:

Model: IC698CPE040
Processor: According to the search results, the module is equipped with different processor versions, including PowerPC 604e
And Pentium-M microprocessors

Clock frequency: Some versions have a main frequency of 400 MHz
Other versions run at 1.6 GHz
Or 1.8 GHz
.
Memory: Most search results indicate that the module is equipped with 64 MB of user memory
Some results also mention 64 MB of user flash memory
, and a version with 256 MB of memory

Communication interface: Supports a variety of communication modes, including RS-232, RS-485 and Ethernet

I/O points: Up to 2048 points

Operating temperature range: varies from -20°C to +55°C
To -25°C to +70°C

Protection class: IP65 and IP67

Size and weight: Approximately 225 mm x 165 mm x 85 mm and 2.5 kg in weight
Other size information is also available, such as 110 mm x 160 mm x 35 mm

The IC698CPE040 module is part of GE’s Series 90 PLC family
It is a core component of the RX7i series of PACSystems
. The module is designed to perform tasks such as control logic, data processing and communication, and is the “brain” of the PLC system. It is widely used in automobile manufacturing, food processing, power system, petrochemical and other fields

Note the following aspects when upgrading and maintaining the IC698CPE040 processor module:

Firmware upgrade: The firmware of the CPU module can be upgraded using the Win loader via the RS-232 or RS-485 serial port. This allows the module to adapt to new technologies and new industrial application requirements

Memory maintenance: The IC698CPE040 CPU is equipped with 64 MB of user memory and 64 MB of user flash memory, ensuring efficient data processing. Periodically check and optimize memory usage to avoid memory overflow or data loss

Serial port usage: The CPU includes 3 serial ports, all of which are independent and isolated and all accessible from the connector on the front of the CPU. Two of these separate ports can be used to perform firmware upgrades to the CPU or to create serial interfaces with external devices

Power and load requirements: When performing upgrades or maintenance, you need to ensure that the power and load requirements meet module specifications, such as 6.8 amps for a load at 5 volts DC

Environmental adaptability: The operating temperature range and storage temperature range should be strictly observed to ensure that the module runs at a proper temperature and avoid overheating or undercooling affecting the performance

Daily self-diagnosis: The IC698CPE040-JP will perform a general self-diagnostic check when powered on, which helps to detect problems early and perform maintenance

Lithium battery pack maintenance: RAM memory is protected by a lithium battery pack, and to avoid memory loss, routine maintenance should include regular replacement of the lithium battery pack

Professional technical support: If you encounter any problems during upgrade or maintenance, contact professional technical support personnel to ensure correct and safe operations.
