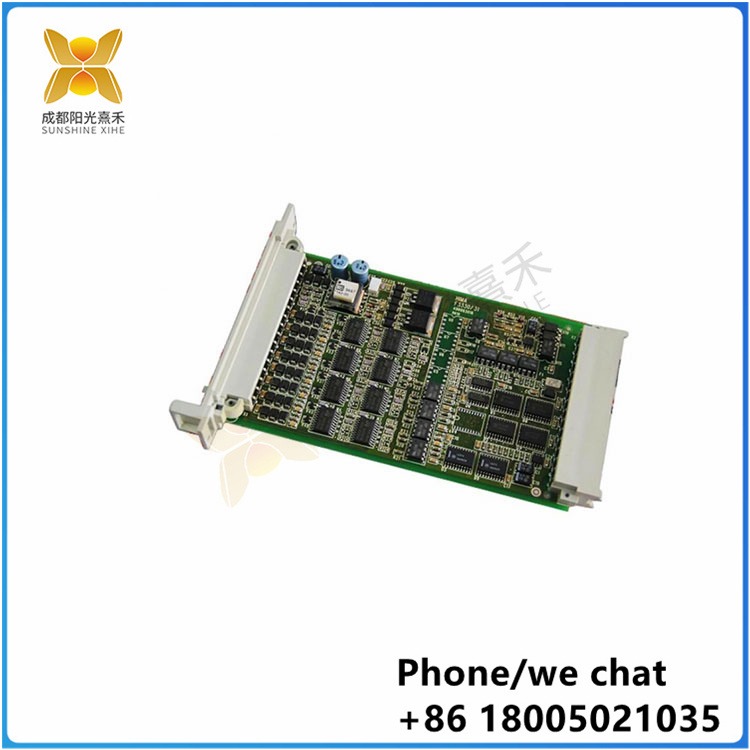

086407-502 is a product produced by ABB that, according to search results, may be a stepping linear control motherboard for stepping linear displacement output. Here are some of the key features and uses of the product:
Step linear control: 086407-502 is mainly used to achieve step linear displacement output, the use of hydraulic valves and stepper motor control hydraulic cylinder to generate linear displacement, so that the digital quantity can be directly converted into A certain thrust of the mechanical displacement, without D/A conversion
Parameter setting: The control board supports zero setting, circle length setting, share coefficient setting, positive and negative setting and output adjustment, supports the setting of the corresponding value of 4~20mA output, and supports the fine-tuning zero and full of 4mA and 20mA output signals
Communication output: 086407-502 supports RS485 communication output, and can set the address rate and communication protocol to meet the needs of different customers
Nonlinear Settings: It also supports 16 nonlinear Settings or field correction, which can be used for the setting of equipment such as winding stack and arc gate
Application: This product is commonly used in industrial automation and control systems as a distributed base station controller for monitoring and controlling equipment or processes
Product specifications: 086407-502 specification size is 20018050mm, power supply voltage is 220VAC, with one 4-20mA analog output and one RS485 full digital output, with communication protocol, can also be customized according to customer requirements
Environmental adaptability: The ambient temperature of the controller ranges from -10 ° C to 60 ° C, and the relative humidity is less than 90%
