⇒Product introduction：

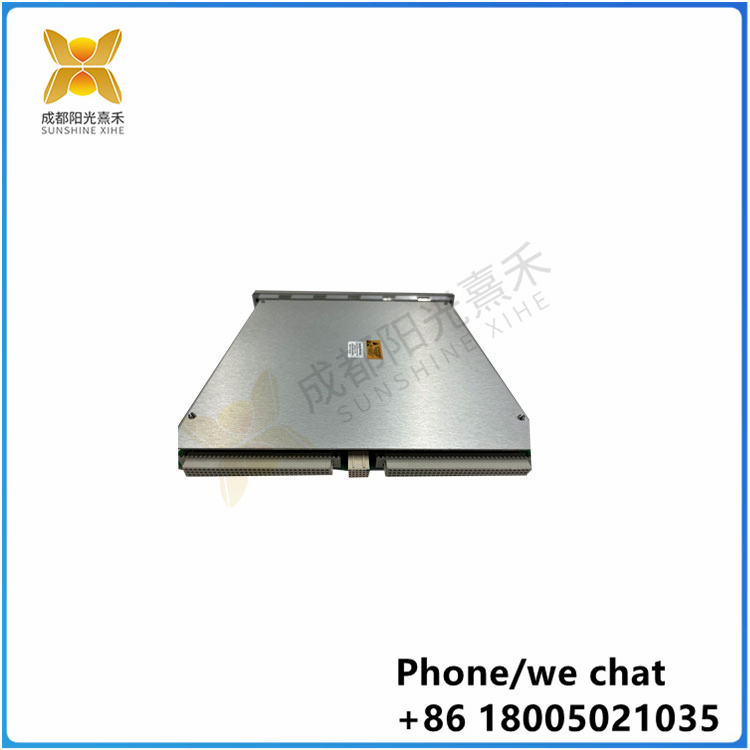

The 3500/22M 288055-01 is a high-performance data interface device that combines the capabilities of a 3500/20 rack interface module

(RIM) with the data collection capabilities of a communications processor to provide real-time, accurate transient data to monitoring systems.

Main features:
Data acquisition capability: The module is capable of acquiring data at speeds up to 1kHz, suitable for fast-paced industrial applications.
Multiple communication interfaces: Support Ethernet, RS-485 and RS-232 interfaces for easy integration with various systems.
Advanced Signal processing: Advanced signal processing capabilities, including filtering, averaging and FFT analysis.
Easy integration: Designed to integrate easily with existing systems, allowing seamless integration into a variety of industrial applications.

Technical specifications:
Power consumption: 10.5 watts.
Interface type: USB-B Front panel.
Ethernet support: 10Base-T or 100Base-TX adaptive, 100Base-FX fiber Ethernet.
Dimensions: Length 24.18 cm, width 2.44 cm, height 24.13 cm.
Weight: TDI module 0.91Kg, I/O module 0.20Kg.

Application field:
Process control: used to control and regulate certain parameters of a machine or system, such as temperature, pressure, flow, etc.
Machine vision: In machine vision systems, used to achieve accurate image processing and control.
Robots: In robot control systems, used to achieve precise motion control and coordination.
Automation: Widely used in a variety of automated production lines and equipment.

Product features:
Static data capture: Standard for TDI, continuous acquisition of both steady state and transient dynamic (waveform) data.
Dynamic Data acquisition: Enable the disk with an optional channel that allows TDI to capture dynamic and high-resolution transient data.
Communication Processor function: TDI integrates communication processor function in 3500 rack, providing universal function, but does not affect the normal operation of the machine.

Installation requirements:
The TDI is located in 3500 slots adjacent to the power supply, and each 3500 rack requires a TDI or RIM, always occupying Slot1(next to the power supply).
