3500/22M-01-01-01Interface between

monitoring system and system mechanical

management software

★★★ Product Introduction:

Features:
Interface between 3500 Monitoring System and System 1 Mechanical Management Software
Integrating 3500/20 RIM functionality with communication processors
Used in conjunction with M-series monitors

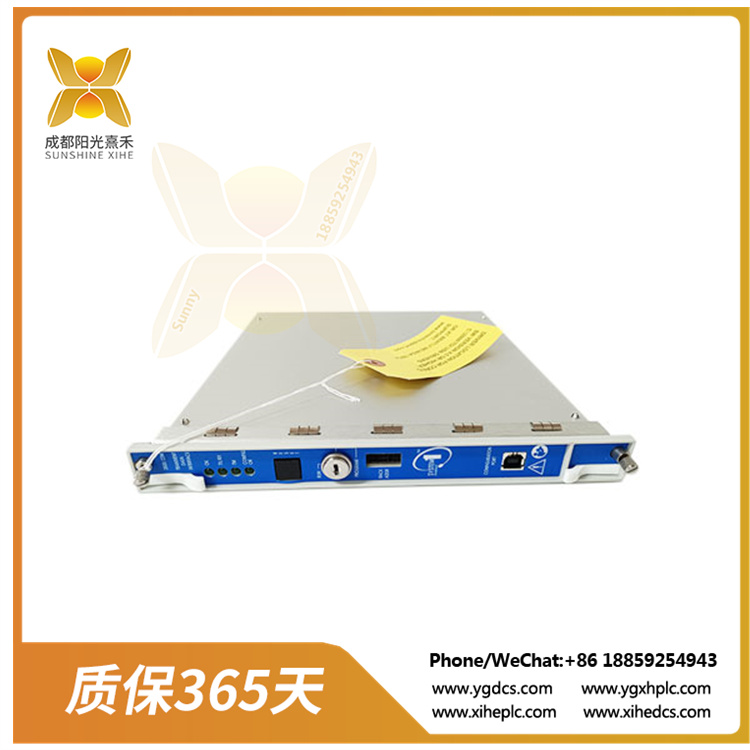

The Bentley Nevada 3500/22M Series Transient Data Interface (TDI) is an interface mechanical management software between the 3500 monitoring system and Bentley Nevada System 1. TDI combines the functions of the 3500/20 rack interface module with the data collection capabilities of communication processors such as TDXnet.

TDI operates in conjunction with M-series monitors (3500/40M, 3500/42M, etc.) in the RIM slot of a 3500 rack to continuously collect steady-state and transient waveform data, and transmit this data to the host software through an Ethernet link. Static data capture is a standard configuration of TDI, but enabling disks with optional channels will also allow for capturing dynamic or transient data. In addition to integrating communication processor functionality in the 3500 rack, TDI has also made improvements to previous communication processors in multiple aspects

TDI provides certain functions that are common to the entire rack, but it is not part of the critical monitoring path and has no impact on the normal operation of the entire monitoring system. Each rack requires a TDI or RIM. TDI only occupies one slot in the rack and is always located at t 1 (next to the power supply) in the Slo.

For Triple Modular Redundancy (TMR) applications, the 3500 system requires the TMR version of TDI. In addition to all standard TDI functions, TMR TDI also performs “monitor channel comparison”. The 3500 TMR configuration uses the settings specified in the monitoring options to perform monitoring voting. By using this method, TMR TDI will continuously compare the outputs of three (3) redundant monitors. If TMR detects that information from one monitor is no longer equivalent to the other two monitors (within the configured percentage), it will mark the monitor as an error and place the event in the system event list.
