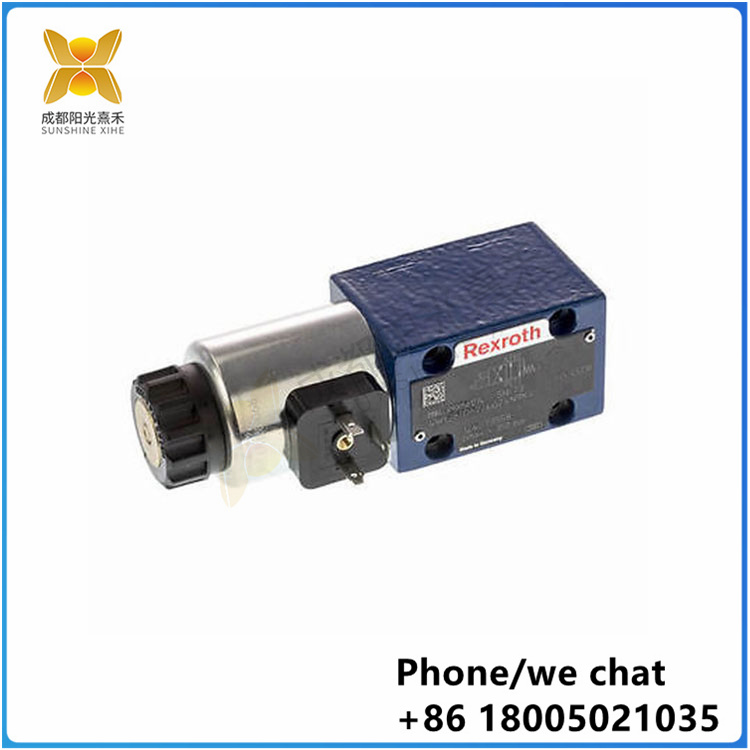

The 4WE6Y62/EG24N9K4 R900561276+HSZ10-26916-AA/G24N9K4M01 R901025684 is a highly responsive directional control valve designed for direct operation and baseboard mounting.
It has an integrated control electronics OBE that allows precise control of flow direction and size, making it suitable for applications requiring position and speed control. The valve is constructed from a housing that includes a connecting surface, a control spool with a compression spring, solenoid, and an integrated position sensor that can be zero adjusted via the Pg cover. The working principle of this model is to electrify the solenoid so that the control spool moves directly in proportion to the electrical input signal. When power is off, the solenoid allows the compression spring to mechanically return the spool to its central position. The WRSE series valves are known for their high response sensitivity and low hysteresis, which contribute to their reliable performance in dynamic applications. The valve port mode conforms to DIN A and ISO standards. The assembly, in size 10, is part of the X Series and can withstand maximum operating pressures up to 80 bar while achieving maximum flow rates up to l/min, with a nominal flow rate of l/min. The 4WE6Y62/EG24N9K4 R900561276+HSZ10-26916-AA/G24N9K4M01 R901025684 is designed to control the efficiency and accuracy of hydraulic systems that are critical to high performance dynamic performance.

Command value:
The positive instruction value at D (0… 10 V or 12… The reference potential at 20 mA) and E results in currents P → A and B → T.

The negative command value at D (0-10 V or 12 to 4 mA) and the reference potential at E result in currents P → B and A → T.

Actual value:
A positive signal at F (0 to 10 V or 12 to 20 mA) and a reference potential at C result in a current from P to A.

Connecting cable:
Suggestion:

Line length up to 25 m: LiYCY 7 x 0.75 mm² Pipeline length up to 50 m: LiYCY 7 x 1.0 mm²
Outer diameter 6.5… 11 mm and/or 8… 13.5 mm
