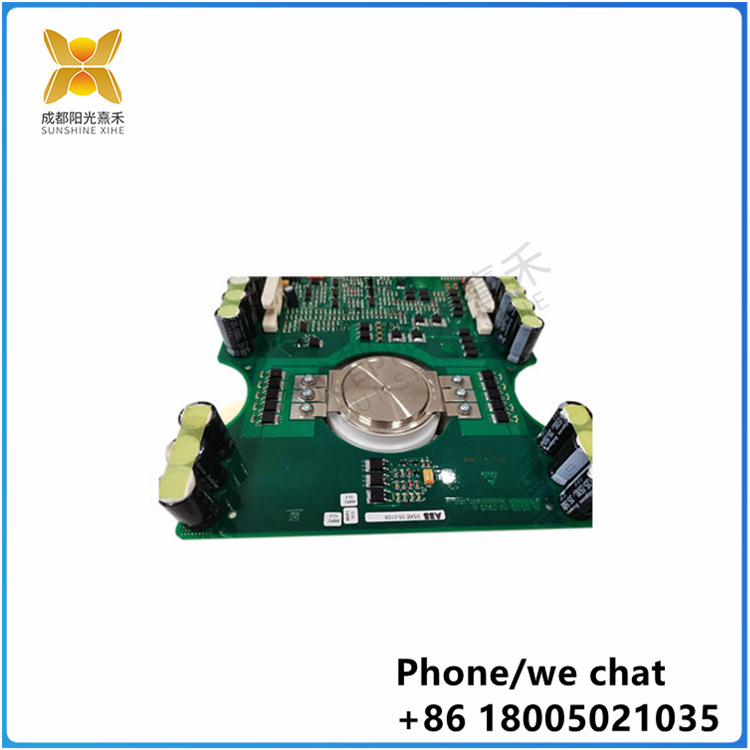

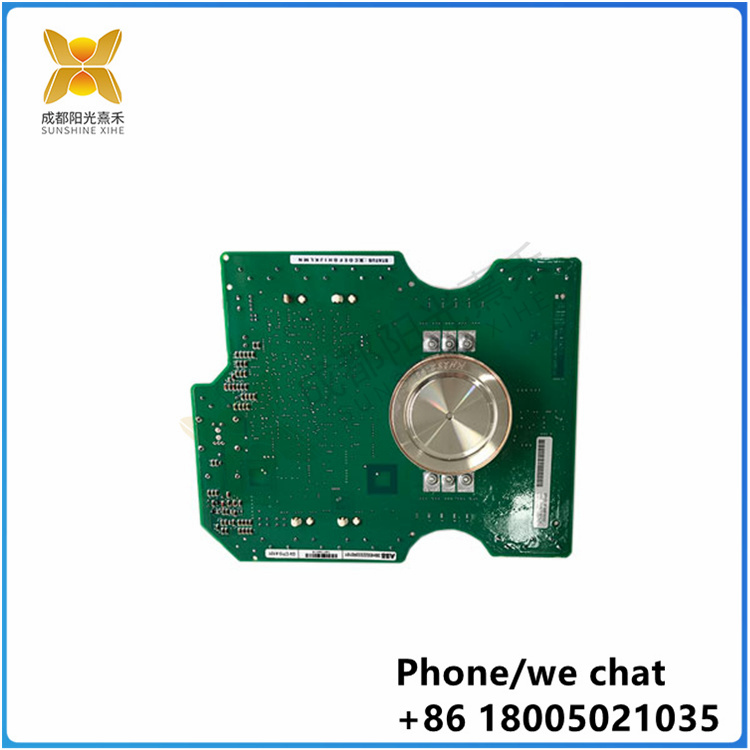

The 5SHX0660F0001 is an IGCT (Integrated Gate commutated thyristor) module manufactured by ABB for industrial automation and power technology applications. IGCT is a kind of high-power semiconductor device, which has the characteristics of small size, good stability and reliable operation. It is suitable for many functions such as rectification, quick switching or cutting of contactless switch, inverter and so on
The module has the following features:
Structurally, it is composed of two thyristors connected in reverse and has a four-layer structure with three PN junctions.
Functions include rectification, quick switching on or off the contactless switch, DC to AC inverter, change AC frequency, etc.
Advantages include fast response speed, high frequency, precise switching state, small size and energy saving, high safety and good stability

ABB’s IGCT modules perform well in several industrial applications, including:
Industrial frequency control: Because of its high reliability and low loss characteristics, IGCT module has been widely used in industrial frequency control system, which helps to improve the control accuracy and energy efficiency of the motor
Wind power grid connection: In the field of wind power, IGCT technology is used to achieve a more efficient energy conversion and grid connection process, supporting the stable access of new energy to the grid
Rail transit: IGCT modules are used in traction converters for rail transit to provide efficient and reliable power conversion
Dc power grid: With the development of DC power grid, IGCT as a high-voltage large-capacity power semiconductor device plays a key role in the DC backbone network
New energy transmission and large-scale energy storage: In the field of new energy transmission and large-scale energy storage, IGCT technology helps to promote the clean transformation of the energy structure due to its superior performance in high-power and low-frequency application scenarios
Power transformers: IGCT has a promising application in DC transformers, which can provide soft switching resonant conversion and improve efficiency and performance
These applications demonstrate the diverse uses of IGCT modules in modern industry, especially where high performance power conversion and control is required. With these technologies, ABB provides efficient and reliable solutions for industrial automation and power technology
