Product introduction：

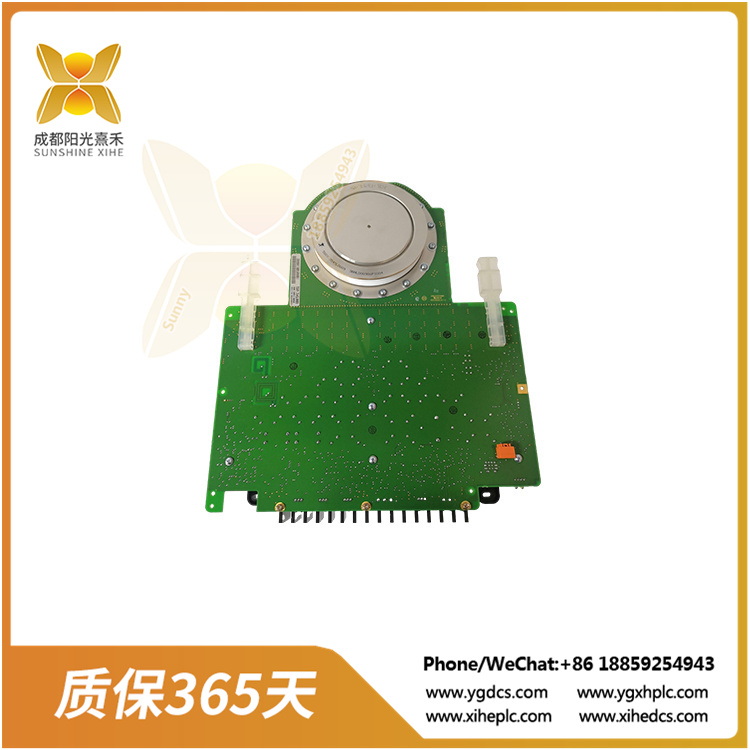

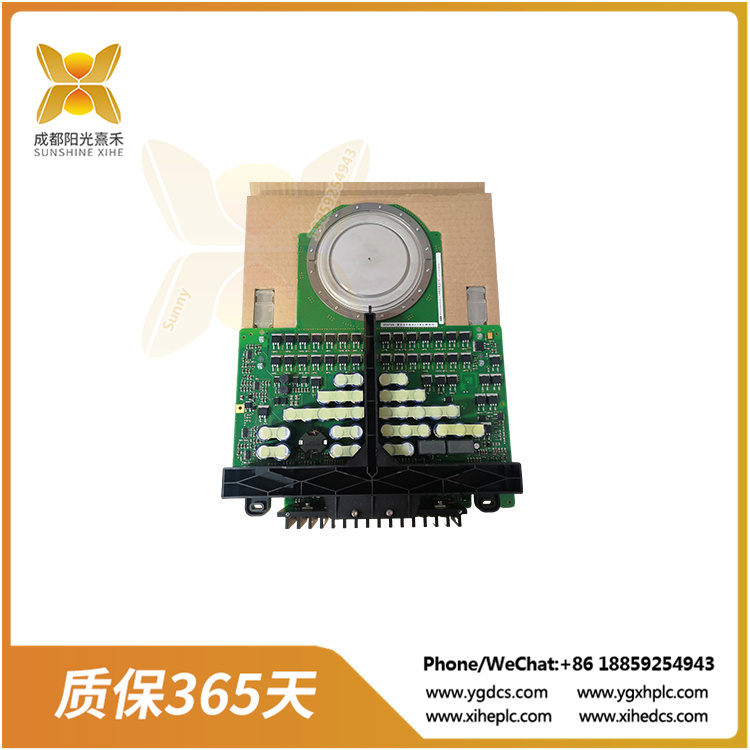

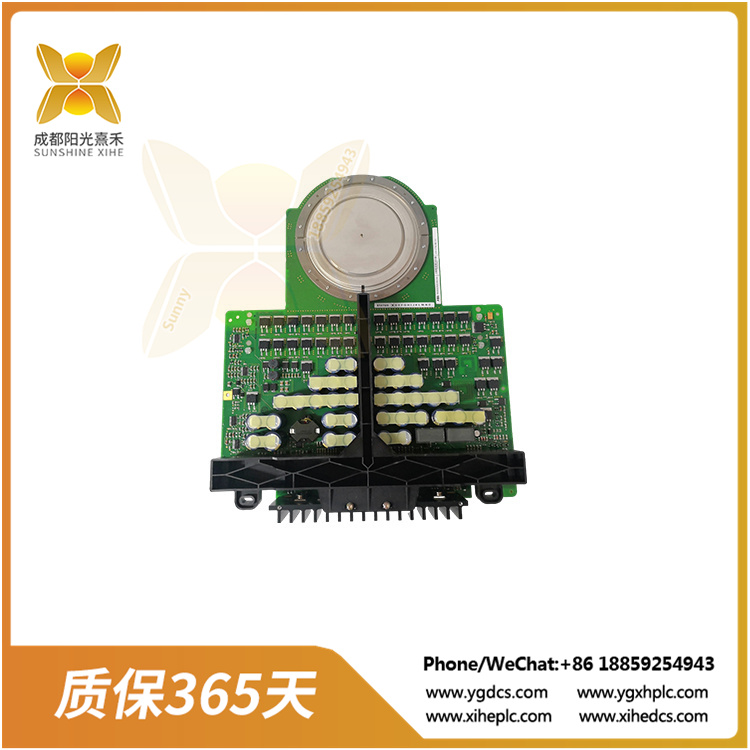

The 5SHY3545L0009 is an integrated gated (IGCT) module manufactured by ABB with the following features and applications:
​Type: Integrated Gated (IGCT) module for high voltage direct current (HVDC) transmission applications
​Technical parameters:
Voltage: 6 kV
Current: 3500A
Loss: <2.5%
Switching frequency: 2 kHz
Switching time: <1μs
Rated power: 21 MW
Dimensions: 250 mm x 350 mm x 150 mm
Weight: 60 kg
  ​Product application: Widely used in submarine cable, land power transmission, renewable energy generation, grid interconnection and other HVDC transmission applications
​Product advantages:
High efficiency: low loss, reduce operating costs.
High reliability: The use of mature technology to ensure long-term reliable operation.
Long service life: Design life of more than 20 years.
Small size, light weight: easy to install and maintain.
Low noise: Improve the working environment
​IGCT features: Combined with the high-speed switching characteristics of IGBT and the high blocking voltage and low on-loss characteristics of GTO, the general trigger signal is transmitted through optical fiber, with high current, high blocking voltage, high switching frequency, high reliability, compact structure, low on-loss and other characteristics, suitable for power system grid devices and medium power industrial drive devices
​Environmental safety: Meet the requirements of RoHS directive
​Specific application scenarios: wind turbines, photovoltaic power generation systems, electric vehicles, high-speed trains, elevators, air conditioning compressors, industrial robots and other fields
