Model Type:SLC Analog Input Module

Type:High Resolution

Number of Channels:4 (Input)

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:Plus/Minus 7.5 VDC Or 7.5 VAC RMS (Maximum)

Input Range:-20 To 20 MA

Absolute Input Current:-30 To 30 MA (Maximum)

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Range (DC):-10 To 10 VDC – 1 LSB

Current Rating:Backplane Current Draw: 35 MA At 5 V, 85 MA At 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

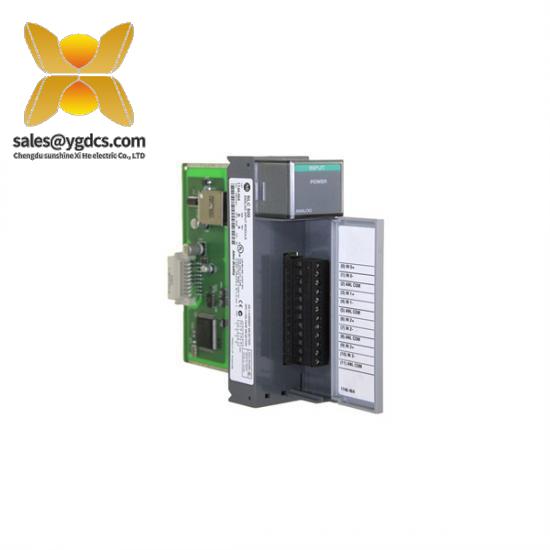

    Engineered for industrial-grade reliability, the Allen-Bradley 1746-NI4/A Analog Input Module ensures accurate data acquisition from a wide range of sensors and actuators, crucial for real-time process control.

    Featuring 4 independent high-resolution channels, this module provides flexibility and scalability for complex automation setups, making it ideal for applications requiring precise signal handling.

    With robust overvoltage protection, the module safeguards against electrical surges, ensuring uninterrupted operation even under harsh industrial conditions.

    The Allen-Bradley 1746-NI4/A is compatible with Allen-Bradley PLC systems, seamlessly integrating into existing control networks to enhance operational efficiency and reduce setup time.

    Designed with user-friendly installation and maintenance in mind, this module simplifies the integration process, saving valuable time and resources for industrial operators.
