Operating Voltage:1500V DC

Current Rating:500A

Temperature Range:-40°C to +150°C

Insulation Resistance:>100MΩ

Switching Frequency:Up to 10kHz

Operating Ambient:Non-condensing environment

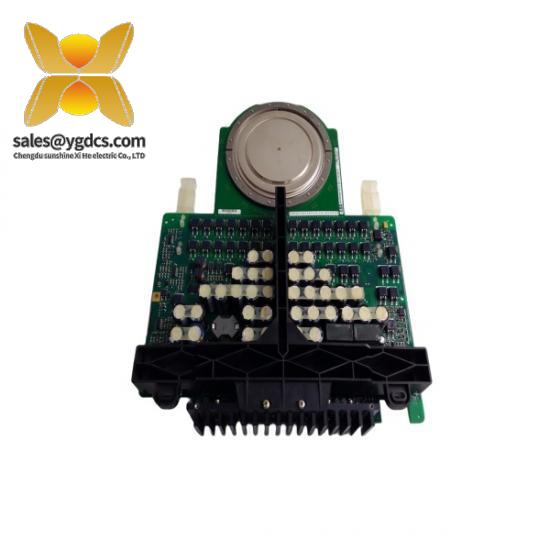

    Integrating advanced semiconductor technology, the ABB 3BHB020538R0001 High Voltage Thyristor Module ensures unparalleled reliability and efficiency in high-voltage applications. Its robust design withstands extreme environmental conditions, making it suitable for industries where reliability is paramount.

    Equipped with state-of-the-art cooling systems, this module efficiently manages heat dissipation, prolonging its operational lifespan and reducing maintenance requirements. The precise control offered by its microsecond switching speed optimizes system performance, ensuring smooth operation under varying load conditions.

    Withstanding a wide temperature range from -40°C to +150°C, the module operates flawlessly across diverse industrial settings. Its Class H thermal rating guarantees consistent performance even in high-heat environments, contributing to overall system stability.

    The ABB 3BHB020538R0001 High Voltage Thyristor Module supports ±10V control voltages, providing versatile compatibility with various control systems. This feature enables seamless integration into existing infrastructure, minimizing installation complexities and downtime.

    Built with a compact yet durable package size of 205mm x 115mm x 58mm and weighing just 1.8kg, the module is easy to install and maintain. It’s an ideal solution for space-constrained environments, offering efficient power handling capabilities without compromising on compactness.
