Operating Temperature:-40°C to +170°C

Maximum Current:Up to 1000A

Maximum Voltage:Up to 1700V

Switching Frequency:Up to 10kHz

Insulation Resistance:≥ 10MΩ

Cooling Method:Air Cooled

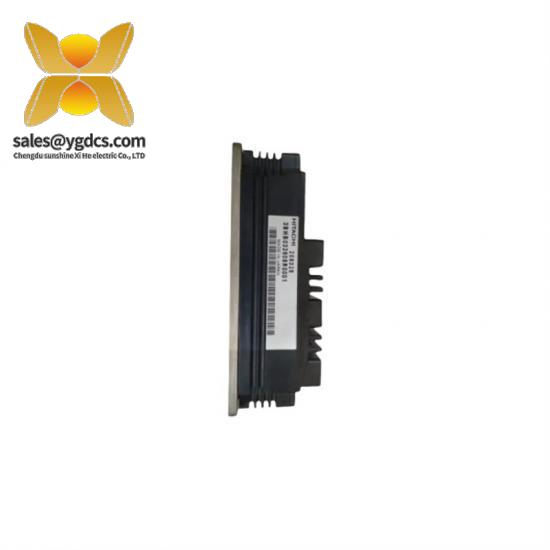

    Introducing the ABB 3BHB032608R0001 IGBT Module, a high-performance solution for modern industrial drive systems. Designed with cutting-edge technology, this module ensures exceptional efficiency and reliability in motor control applications, delivering superior performance across a wide range of industrial settings.

    Featuring a compact design, this IGBT module optimizes space utilization without compromising on performance. Its robust construction withstands extreme temperatures, from -40°C to +150°C, ensuring it can operate in the most demanding environments.

    With a maximum current rating of 326 A and a switching frequency of 12 kHz, the ABB 3BHB032608R0001 offers unmatched speed and precision in controlling motors. Its F-Class insulation ensures long-term reliability, backed by over 1 million switching cycles.

    Equipped with thermal pad cooling, this IGBT module efficiently manages heat dissipation, enhancing its operational lifespan. The compact size allows for easy integration into existing systems, while its IP20 protection class safeguards against dust and light splashes.

    Suitable for applications up to 5000 meters above sea level, this IGBT module is a versatile choice for industries worldwide. Experience the future of industrial drive systems with the ABB 3BHB032608R0001 IGBT Module, setting new standards for efficiency and reliability.
