Operating Voltage:Up to 1000V

Current Rating:500A

Switching Frequency:Up to 10 kHz

Cooling Method:Water Cooled

Insulation Resistance:≥10MΩ @ 500VDC

Environmental Temperature Range:-40°C to +150°C

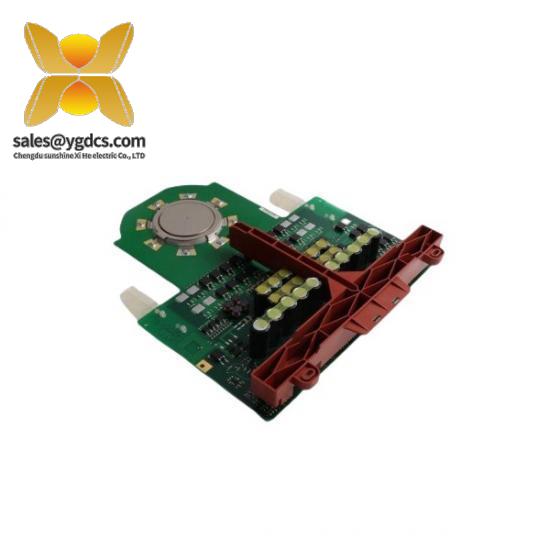

    Integrating advanced semiconductor technology, the ABB 5SHX 1000H0003 IGBT Module is engineered for demanding industrial environments where reliability and performance are paramount. This module is optimized for applications requiring high efficiency and robust control capabilities, making it an indispensable component in modern industrial automation.

    Featuring a compact design that maximizes space utilization without compromising on power handling capacity, this IGBT module is designed to withstand harsh operating conditions. Its wide temperature range ensures stable operation across various industrial settings, from cold storage facilities to hot manufacturing plants.

    With its high input voltage capability, the ABB 5SHX 1000H0003 is capable of handling significant electrical loads efficiently. The module’s ability to deliver peak currents without overheating makes it suitable for applications where power demand spikes are common, ensuring continuous operation and reduced downtime.

    Equipped with advanced gate drive technology, this IGBT module offers precise current control and fast switching capabilities, enhancing system responsiveness and efficiency. Its superior insulation resistance and high operating frequency contribute to reduced power losses and increased system reliability.

    For optimal performance, the ABB 5SHX 1000H0003 is designed for air-cooled systems, which not only reduces maintenance requirements but also enhances thermal management. This modular design facilitates easy integration into existing systems, allowing for seamless upgrades and expansions without major reconfiguration.
