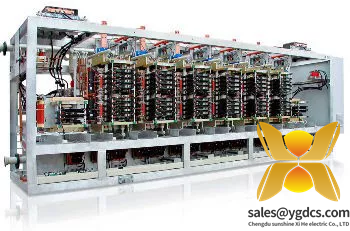

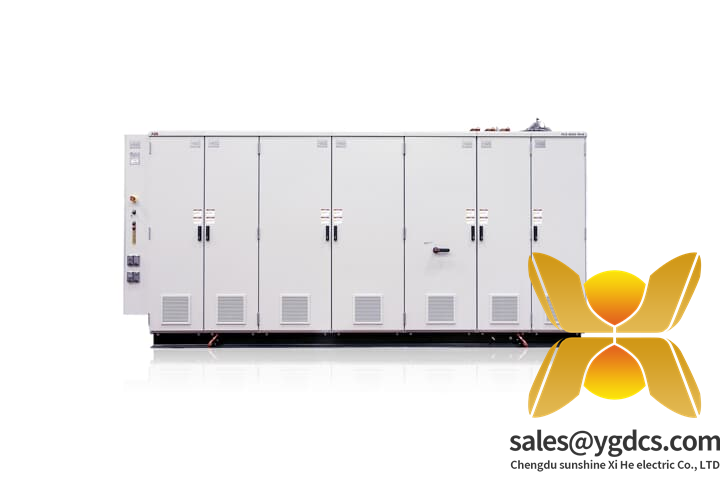

STATCOM for Wind Farm to meet Grid Code reguirements.The ABB PCS6000 inverter meets all requirements related to technical design, efficiency, reliability, protection, and safety. The certification process involves a detailed evaluation of the PCS6000 test results, including functional testing, thermal operation testing, vibration testing, humidity and temperature testing, EMC testing, and protection testing.

PCS6000 is the first medium voltage wind power converter to obtain CGC certification. In addition to CGC, PCS6000 has also passed the DNV-GL GL-IV-2:2012 product certification.

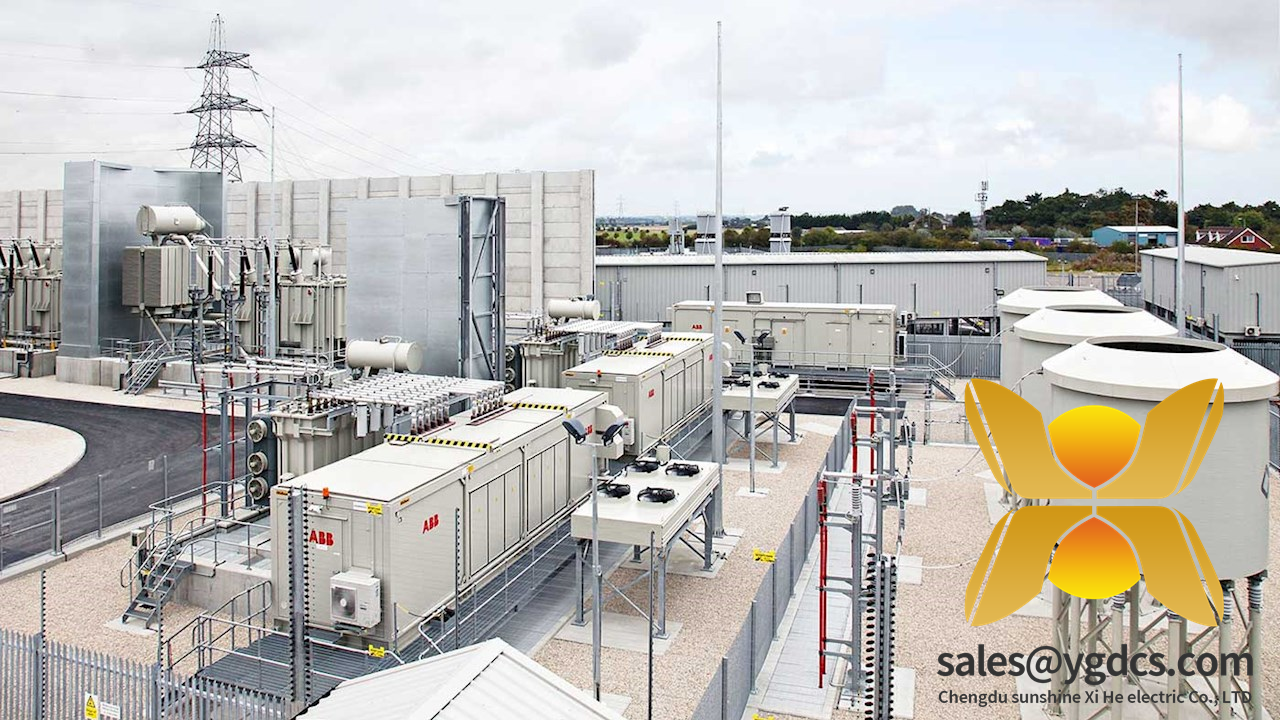

STATCOM:
The STATCOM (STATic COMpensator) technology adds themissing functionality to wind parks in order to become gridcode compliant. The STATCOM as a pure static device withswitched passiveelementsprovides outstandingnoperformance for both steady state and dynamic operation.Especially, the fast dynamic voltage control and the behaviorduring balanced as well as unbalanced grid faults (fault ridethrough)allow meeting the stringent grid code requirements.Based on the medium-voltage converter platform widely usedfor industrial applications, ABB has successfully suppliedSTATCOMs to the wind power industry in order to integratewind parksgrids with demandingintoconnectionrequirements

Power Range: The PCS 6000 Wind has a power range of 4 MW to 12 MW and is suitable for large offshore wind turbines
one
two
.
Voltage level: The rated voltage of the inverter is 3.3 kV and 4.16 kV, with a generator side voltage range of 0 to 4.3 kV and a grid side voltage range of 0 to 4.3 kV
one
.
Frequency range: The generator side frequency can reach 120 Hz, and the grid side frequency is 50/60 Hz
one
.
Efficiency: The efficiency at the rated point is approximately 98%
one
.
Cooling method: using water-cooled closed-loop cooling unit
one
.
Control method: Equipped with ABB AC 800PEC controller, using pulse width modulation and optimized pulse mode for control
one
.
Fieldbus interface: supports interfaces such as Profibus DP, Profinet IO, Modbus TCP, EtherCat, CANopen Ethernet, etc
one
.
Environmental adaptability: Suitable for environmental temperature range of -25 to+70 ℃, storage temperature range of -25 to+55 ℃, and operating temperature range of -10 to+45 ℃
one
.
Technical features and advantages:
Modular design: supports easy customization to meet the needs of different customers
one
.
High availability: With a small number of components and low losses, it supports tower or cabin installation, reduces cable laying costs, and improves efficiency
one
.
Efficient operation: possessing fault crossing capability and complying with grid connection guidelines to ensure stable system operation
one
.
Application scenarios:
Suitable for large offshore wind turbines, can be used in conjunction with permanent magnet generators and induction generators
two
.
Compact structure, small footprint, suitable for short cabin or tower installation
two
