Communication Protocol:Profibus DP

Module Type:Master Module

Connector Type:Modular

Data Rate:1200 Kbit/s to 12 Mbit/s

Power Supply:24 V DC

Operating Temperature Range:-25°C to +60°C

Protection Class:IP20

Dimensions (WxHxD):144mm x 112mm x 74mm

Weight:0.3 kg

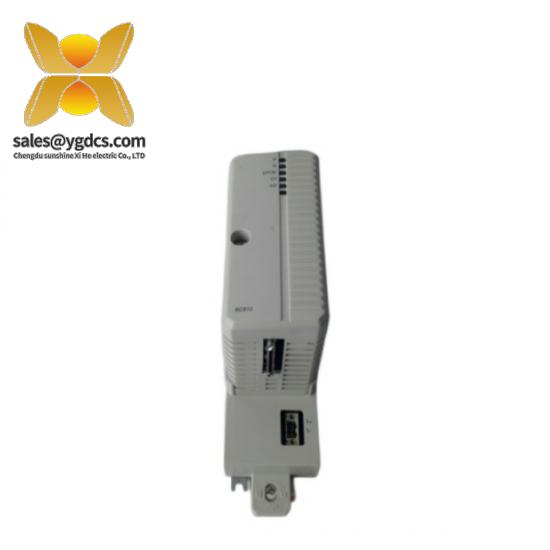

    The ABB CI930F PROFIBUS DP Master Module, model 3BDH001010R0002, stands out for its robust design and efficient communication capabilities. This master module ensures reliable and fast data exchange within PROFIBUS DP networks, enabling seamless integration into complex industrial control systems.

    Engineered with precision, this module supports up to 125 devices on a single network, significantly enhancing system scalability and efficiency. It operates at an impressive data transmission speed of up to 12 Mbps, ensuring swift and accurate data processing.

    Adaptable to various power supplies ranging from 12 to 24 volts DC, this module is versatile and can be deployed in diverse industrial environments. Its operating temperature range from -25°C to +60°C makes it suitable for extreme conditions, ensuring consistent performance regardless of the environment.

    Featuring an IP20 environmental protection rating, the ABB CI930F module offers protection against dust and splashing water, safeguarding it against potential damage in industrial settings. This level of durability is critical for maintaining operational reliability in harsh conditions.

    Compact yet powerful, the CI930F module measures 120 mm in width, 85 mm in height, and 54 mm in depth, making it an ideal choice for space-constrained environments. Weighing only 0.15 kg, it’s lightweight and easy to install, minimizing the overall footprint in industrial setups.
