Product Type:Pulse Counter Board

Model Number:57160001-KG

Manufacturer:ABB

Dimensions (WxHxD):7.62cm x 5.08cm x 1.27cm

Operating Voltage:DC 24V

Counting Rate:Up to 10 MHz

Accuracy at 25°C:+/- 1ppm

Temperature Range:-20°C to +70°C

Reliability:MTBF > 100,000 hours

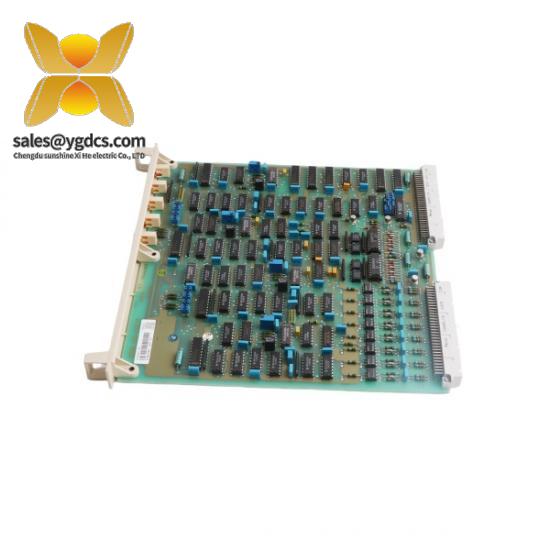

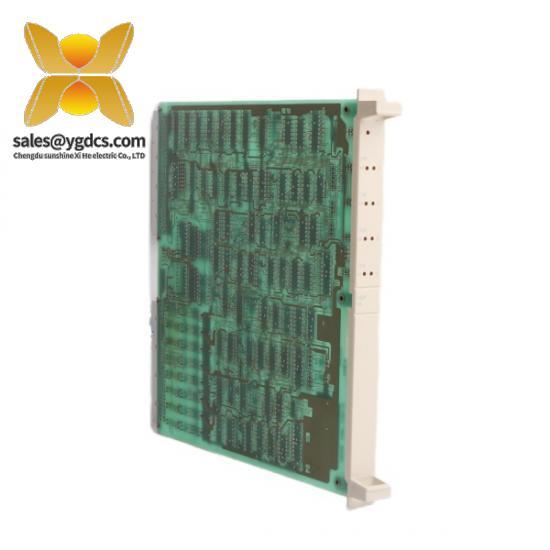

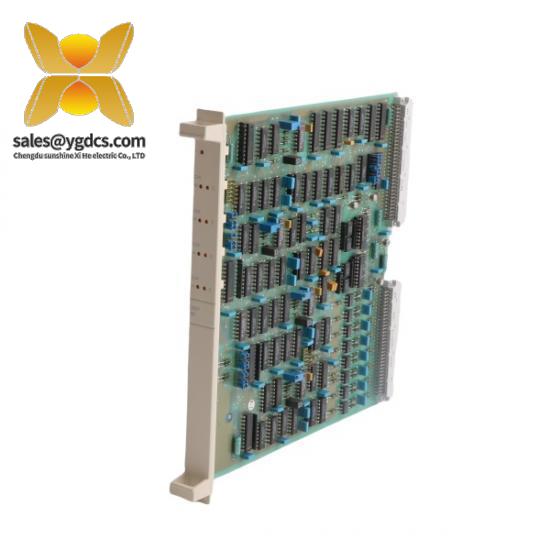

    The ABB DSDP160 57160001-KG Pulse Counter Board is engineered for exceptional reliability and accuracy in industrial environments. Its microcontroller-based design ensures efficient processing and precise timing in applications requiring high-frequency counts.

    Featuring a wide operating temperature range from 0°C to +55°C, this board is suitable for use in various industrial conditions, making it a versatile choice for different applications. It supports a broad input voltage range of DC 10V to 30V, providing flexibility in power supply options.

    Equipped with a relay output, this pulse counter board is capable of delivering reliable signals in control circuits. With a maximum counting rate of up to 10 MHz, it can handle high-speed events with minimal lag, ensuring accurate timing in critical operations.

    The high accuracy of +/- 0.05% guarantees dependable performance even under fluctuating conditions, making it an ideal solution for applications where precision is paramount. Additionally, the low power consumption of ≤ 1W ensures efficient operation, reducing energy costs and maintenance requirements.

    Designed with ease of integration in mind, the ABB DSDP160 57160001-KG Pulse Counter Board is compatible with various PLC systems and control panels. Its compact size and robust build quality make it suitable for installation in confined spaces, enhancing its applicability in diverse industrial settings.
