Product Type:Pulse Counting Board

Model Number:57160001ADF

Manufacturer:ABB

Weight:0.38 kg

Maximum Pulse Frequency:2.5 MHz

Measurement Accuracy:±0.1%

Input Voltage Range:10V to 28V DC

Output Voltage Range:0 to 10V DC

Operating Temperature:-20°C to +55°C

Environmental Resistance:IP20 (non-sealed)

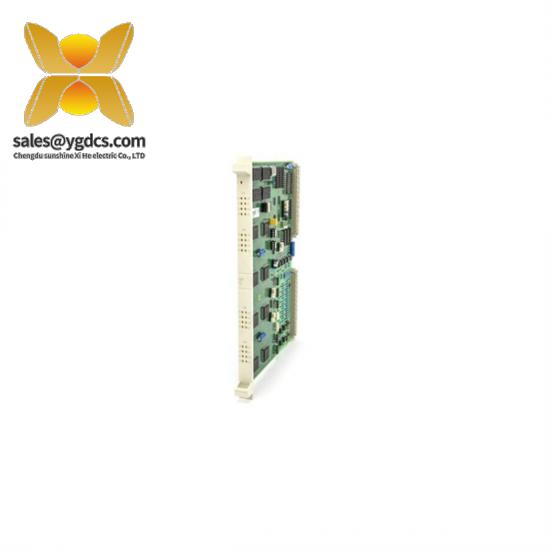

    The ABB DSDP170 Pulse Counting Board is an essential component in the field of industrial automation, specifically tailored for high-precision position control and speed measurement applications. It integrates seamlessly with various industrial control systems to enhance operational accuracy and efficiency.

    Featuring a maximum pulse frequency of 2.5 MHz, this board ensures reliable performance in demanding environments where precise timing is critical. Its compact design, measuring just 92 x 50 x 25 mm, makes it versatile for installation in a wide range of machinery and systems.

    With an operating temperature range from -20°C to +60°C, the ABB DSDP170 is designed to withstand harsh industrial conditions, ensuring continuous operation without degradation in performance. Its compatibility with DC 5V, 10mA power supply further enhances its adaptability across different industrial settings.

    This Pulse Counting Board is primarily intended for use in positioning and length measurements, as well as speed and frequency measuring tasks. Its capability to accurately count and measure these parameters makes it invaluable in industries requiring high levels of precision, such as manufacturing, robotics, and process control.

    Crafted with superior materials and advanced technology, the ABB DSDP170 Pulse Counting Board ensures reliability, durability, and longevity. It is a testament to ABB’s commitment to providing cutting-edge solutions that meet the evolving demands of modern industrial automation.
