Operating System Compatibility:Windows, Linux

Power Supply Voltage:DC 5V

Data Acquisition Rate:Up to 1 kHz

Analog Input Range:-10V to +10V

Analog Output Range:0V to 10V

Communication Protocol:DeviceNet, EtherCAT

Dimensions:84mm x 51mm x 22mm

Weight:40g

Temperature Range:-20°C to +55°C

Humidity Range:0% to 95% RH

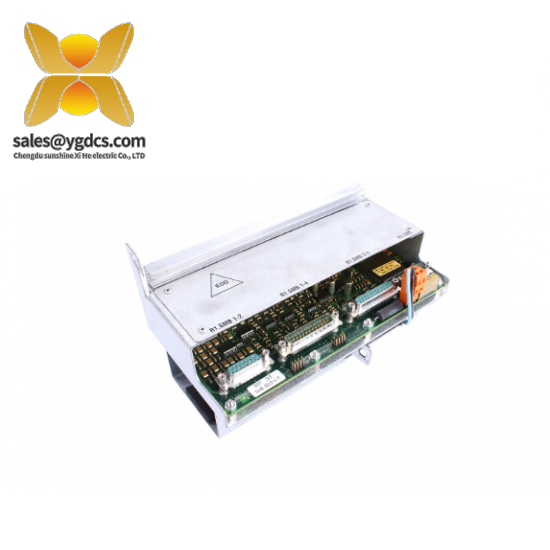

    Integrating state-of-the-art technology, the ABB DSQC313 3HAB2213-1/3 Measurement Board is meticulously crafted for seamless integration into ABB’s industrial automation solutions, ensuring optimal performance across various manufacturing environments.

    With its robust design and high accuracy capabilities, this measurement board facilitates real-time data acquisition, enabling precise control over machinery and processes. Its versatile communication protocol support ensures compatibility with a wide array of industrial automation systems.

    Featuring a wide temperature range (-25°C to +60°C), the DSQC313 3HAB2213-1/3 is engineered to withstand challenging industrial conditions, making it a reliable choice for harsh environments. Its durable construction and efficient power management contribute to its longevity and cost-effectiveness.

    This board offers a comprehensive suite of input/output channels, providing users with the flexibility to customize their control systems according to specific application requirements. Whether it’s monitoring sensor outputs, controlling actuators, or managing complex industrial processes, the DSQC313 3HAB2213-1/3 is a versatile solution for modern industrial automation needs.

    Designed for ease of integration and operation, the ABB DSQC313 3HAB2213-1/3 Measurement Board is backed by ABB’s industry-leading technical support and extensive documentation. This ensures that users can quickly adopt and optimize the use of the board within their existing automation systems, driving productivity and efficiency gains.
