Operating Voltage:24V DC

Current Consumption:Max. 20mA

Communication Protocol:RS-232/RS-422/RS-485

Data Transmission Rate:Up to 230kbps

Number of Channels:16

Accuracy:+/- 0.02% of full scale

Environmental Conditions:Temperature: -20°C to +60°C, Humidity: 5% to 95% non-condensing

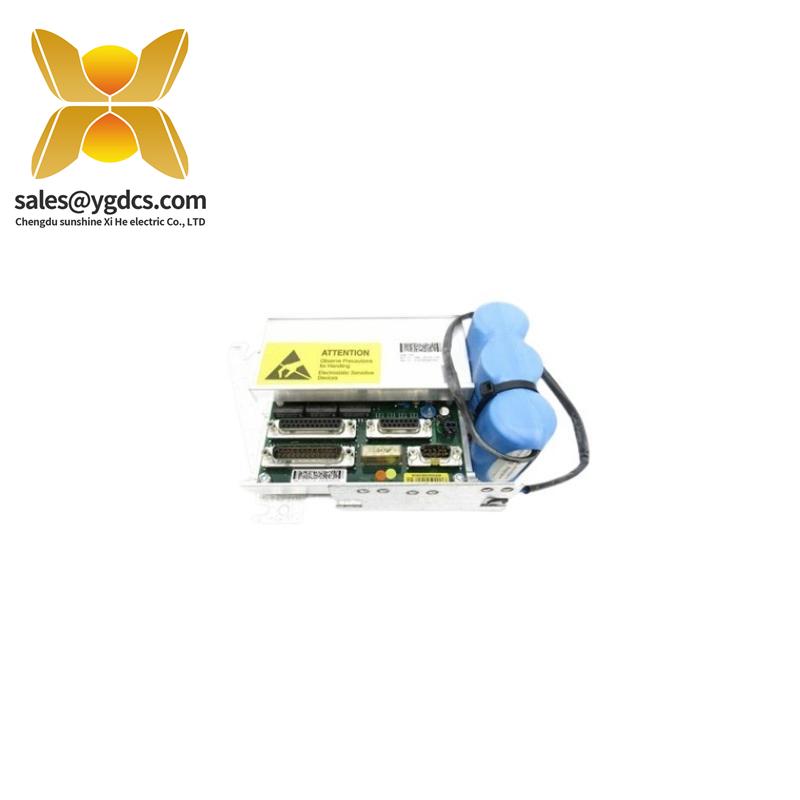

    The ABB DSQC562 3HAC16014-1/07 is renowned for its robust design and reliability, ensuring consistent performance in harsh industrial environments. This serial measurement unit supports various communication protocols, enhancing compatibility with diverse control systems and software solutions.

    With dual analog input channels capable of measuring voltage and current signals, the DSQC562 3HAC16014-1/07 provides precise data acquisition, crucial for process control and monitoring in industries such as manufacturing, automotive, and energy.

    Equipped with 16 digital I/O channels, the unit offers flexible connectivity options for control and signal processing tasks, including logic control, sensor interface, and actuator commands.

    Featuring a compact yet durable enclosure, the DSQC562 3HAC16014-1/07 is designed to withstand demanding conditions without compromising on functionality or performance. Its wide operating temperature range ensures reliable operation across various industrial settings.

    For optimal integration, the unit supports DeviceNet, Profinet, and Ethernet/IP communication protocols, enabling seamless communication within industrial networks. This feature facilitates streamlined data exchange and enhanced system efficiency.
