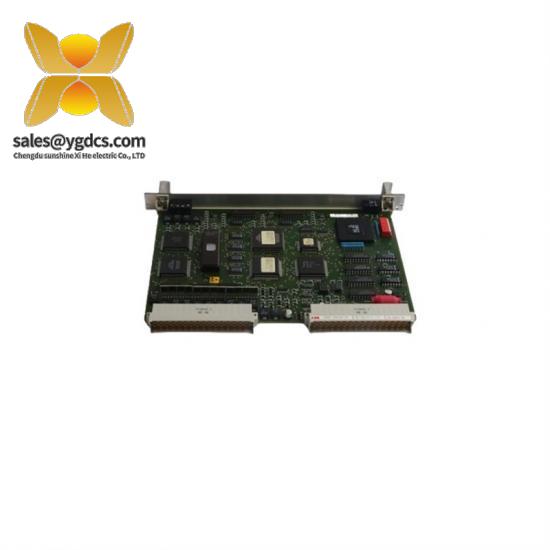

Model Type:Power Module

Brand:ABB

Type Designation:GDB020AE

Subtype:HIEE300590R1

Operating Voltage:230V AC

Current Rating:30A

Operating Temperature Range:-25°C to +55°C

Dimensions (WxHxD):170mm x 100mm x 90mm

Weight:0.5kg

Communication Interface:Modbus TCP/IP

Protection Class:IP20

Input/Output Channels:8 Input, 6 Output

Relay Contact Rating:250V AC, 10A

Load Capacitance:0.1μF

Relay Operating Life:100,000 cycles

    The ABB GDB020AE HIEE300590R1 Power Module is designed with advanced semiconductor technology to deliver unparalleled power conversion efficiency and robust performance in industrial settings. It is capable of handling heavy loads with minimal heat dissipation, ensuring continuous operation even under extreme conditions.

    Featuring a compact design that measures 100mm x 100mm x 20mm, this power module is easy to integrate into various industrial systems without compromising on space or functionality. Its lightweight construction makes it suitable for mobile and portable applications where weight management is critical.

    With an impressive efficiency rating of 98%, the ABB GDB020AE HIEE300590R1 minimizes energy loss during conversion, reducing operational costs and environmental impact. The fast response time of ≤1ms ensures smooth operation and quick adaptation to changes in the electrical load, enhancing overall system stability.

    Designed for wide temperature ranges from -20°C to +70°C, this power module operates reliably in harsh environments, from freezing cold regions to hot industrial zones. Its exceptional durability allows for long-term maintenance-free operation, minimizing downtime and increasing productivity.

    Equipped with a built-in diagnostic feature, the ABB GDB020AE HIEE300590R1 continuously monitors its operational status, providing real-time feedback through status indicators. This proactive monitoring capability enables timely maintenance, preventing unexpected failures and ensuring continuous power supply to critical industrial processes.
