Product Type:Analog Input Module

Model:IMAS102

Manufacturer:ABB

Max Input Voltage:Up to 100V

Resolution:0.01V

Accuracy:±0.02%

Channels:4

Operating Temperature Range:-25°C to +85°C

Storage Temperature Range:-40°C to +85°C

Input Current Range:0 to 20mA

Power Consumption:Typically 5mA at 5V

Dimensions (WxHxD):80mm x 100mm x 35mm

Weight:Approx. 0.2kg

Connectivity:2-wire analog input

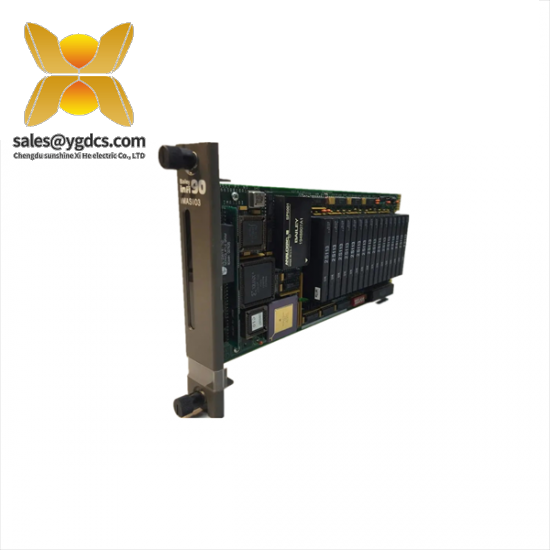

    The ABB IMAS102 Analog Input Module is engineered to provide unparalleled precision and accuracy in industrial applications. This module is designed for seamless integration into complex control systems, ensuring reliable data acquisition under various operational conditions.

    With a wide input range of -10V to +10V, the IMAS102 is suitable for a broad spectrum of industrial measurement tasks, including temperature, pressure, and flow monitoring.

    Featuring a sampling rate of up to 1 kHz, this module ensures real-time data processing, critical for applications requiring fast response times and dynamic control adjustments.

    Operable within an expansive temperature range from -25°C to +85°C, the IMAS102 maintains optimal performance across diverse environmental conditions, making it ideal for outdoor and extreme condition applications.

    The low power consumption of ≤ 1W makes it energy-efficient, reducing operational costs without compromising on functionality. It supports both 2-wire and 4-wire connection types, offering flexibility in system design.

    Equipped with Modbus RTU protocol compatibility, the IMAS102 ensures seamless communication with a wide array of industrial automation systems, enhancing interoperability and system scalability.
