Model:TY801

Type:Shunt Board

Brand:ABB

Application Range:Industrial Control Systems

Operating Temperature:-20°C to +60°C

Accuracy Level:±0.1%

Current Capacity:Up to 1000A

Power Supply Voltage:DC 5V to 24V

Input Resistance:Less than 0.05 Ohms

Communication Interface:RS485 Modbus RTU

Dimensions:80mm x 40mm x 20mm

Weight:0.15kg

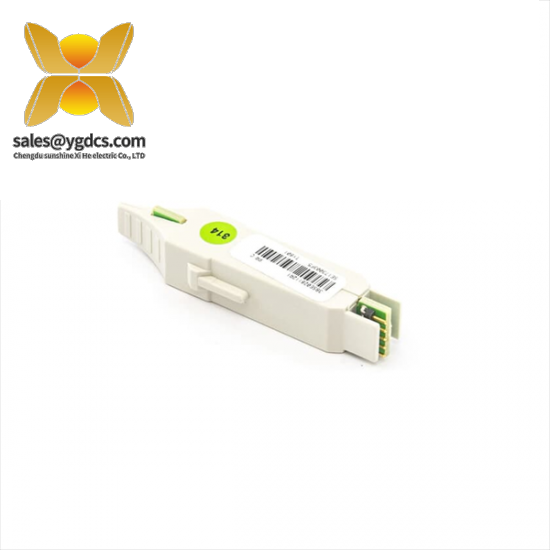

    The ABB TY801 Shunt Board is a robust and reliable solution for monitoring and controlling current flows in industrial environments. Its compact design and high-quality materials ensure accurate measurements under various conditions.

    Equipped with advanced circuitry, this shunt board offers precise voltage and current readings, essential for maintaining the efficiency and safety of electrical systems. It is compatible with a wide range of control panels and automation systems.

    Designed for use in temperatures ranging from -40°C to +70°C, the ABB TY801 Shunt Board ensures continuous operation in extreme environments, making it suitable for applications in manufacturing plants, power distribution centers, and other industrial settings.

    The board features a terminal block connection, providing easy integration with existing wiring systems and facilitating quick installation and maintenance. Its high-grade copper alloy construction ensures durability and efficient heat dissipation.

    With an operating frequency up to 400Hz and a load capacity up to 2kW, the ABB TY801 Shunt Board is capable of handling high-power applications without compromising on accuracy or reliability. This makes it an ideal choice for industries requiring precise current measurement in their control systems.
