Operating Voltage:48V DC

Nominal Current:7.0A

Peak Torque:22 Nm

Communication Protocol:EtherCAT, DeviceNet, Modbus TCP/IP

Control Modes:Position, Velocity, Torque

Encoder Compatibility:4-24 bit, up to 20,000 RPM

Power Supply:Internal Power Supply

Dimensions (WxDxH):98 x 135 x 32 mm

Weight:1.3 kg

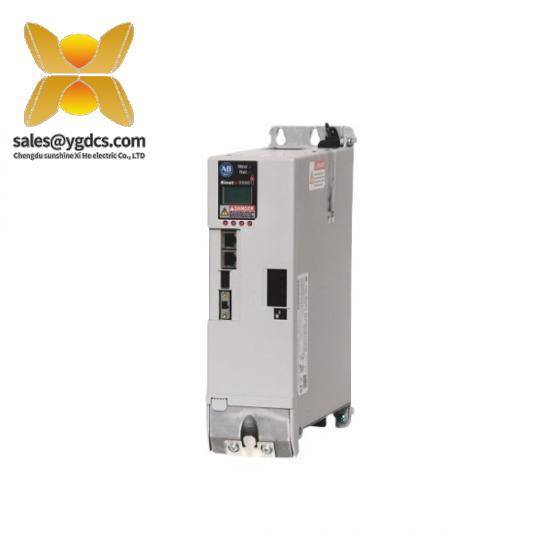

    The ABB 2198-H070-ERS2 Kinetix 5500 Servo Drive is engineered for exceptional precision and dynamic response, making it ideal for complex motion control tasks. Its modular design allows for easy integration into existing systems, reducing installation time and costs.

    Featuring a high-resolution encoder compatibility, this drive ensures accurate position control even in the most demanding environments. With support for multiple communication protocols, it seamlessly connects with various automation systems, enhancing flexibility and efficiency.

    Designed with robust construction and durable materials, the Kinetix 5500 Servo Drive is built to withstand harsh industrial conditions, ensuring reliability and longevity. It supports three control modes—position, velocity, and torque—providing versatile control options for different applications.

    This servo drive comes equipped with an internal power supply, eliminating the need for external components and simplifying installation. Its compact size and lightweight design make it suitable for space-constrained areas without compromising on performance.

    In addition to its technical prowess, the ABB 2198-H070-ERS2 Kinetix 5500 Servo Drive is backed by comprehensive support and resources from ABB’s industry-leading engineering team. This includes detailed documentation, application-specific advice, and access to training programs, ensuring users can maximize the performance and longevity of their investment.
