Product introduction：

Basic information
Item number 3BSE008516R1
Type analog input
Signal specification 0… 20mA, 4… 20mA, 0… 10V, 2… 10V
Number of channels 8
Signal type Unipolar single-ended
Hatno
State-owned enterprises do not
Redundant not
High integrity
Intrinsically safe
Mechanics S800 series
Detailed data
Resolution 12 bits
Input impedance 290 kΩ (voltage input)
230-275 kΩ (Current input)
Isolation groups are isolated from the ground
Below/out of range -5% / +15%
Error maximum 0.1%

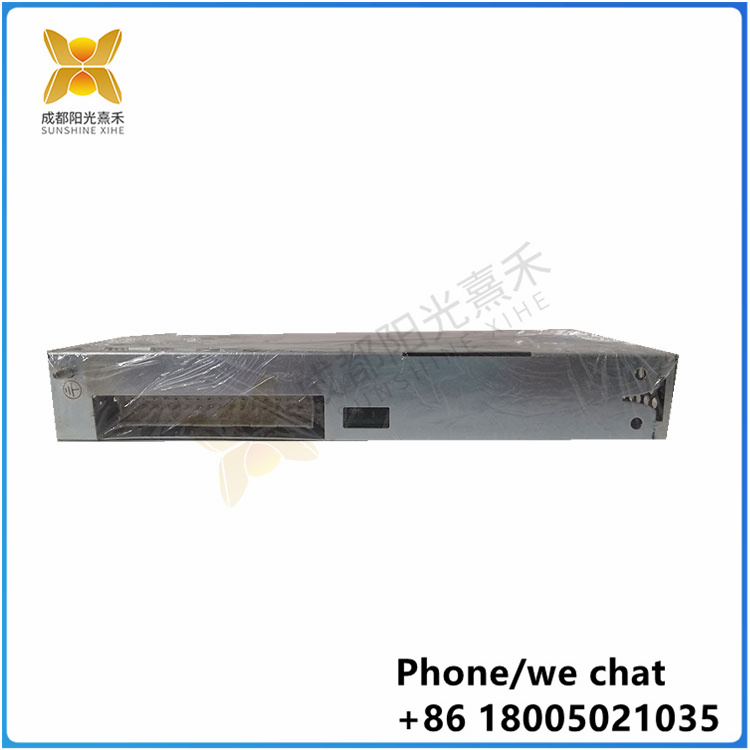

AI610

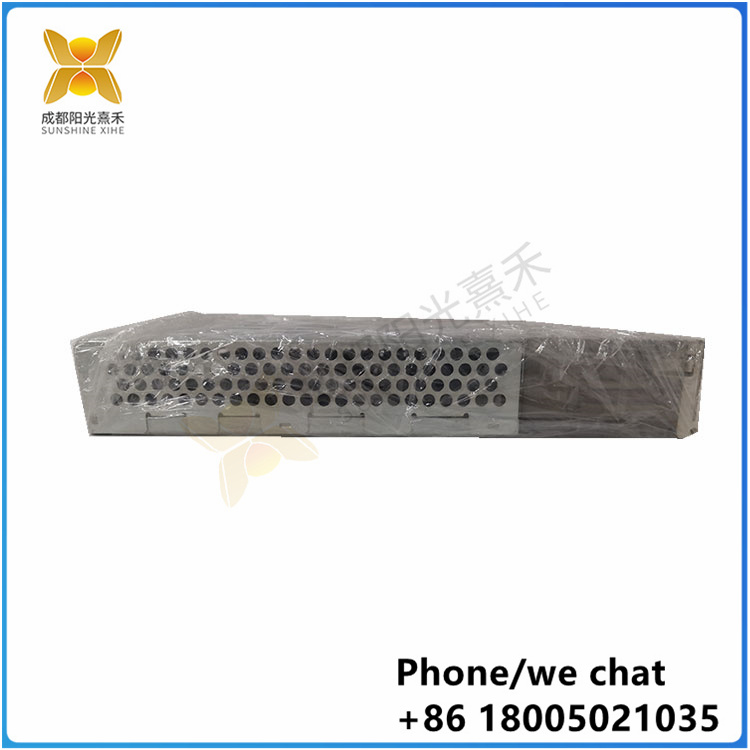

AI610

Temperature drift voltage: typical value 70 ppm/°C, maximum 100 ppm/°C; Current: Typical value 50 ppm/°C, maximum 80 ppm/°C
Input filter (rise time 0-90%) 140 ms
The update cycle time is 8 milliseconds
Current limitation Transmitter power can be limited by the current of the MTU
Maximum field cable length 600 meters (656 yards)
Maximum input voltage (non-destructive) 30 V DC
NMR, 50 Hz, 60 Hz > 40 dB
Rated insulation voltage 50 volts
Dielectric test voltage 500 V AC
Power consumption 1.5W
Current consumption +5 V Modulebus 70 MA
Current consumption +24 V Modulebus 40 MA
​The AI810 analog input module has eight channels. Each channel can be a voltage input or a current input. The current input is capable of handling a short circuit in the transmitter power supply of at least 30 V d.c without damage. Current limiting is performed through a PTC resistor. The input resistance for current input is 250 ohms, including PTC.
​The voltage input can withstand overvoltage or undervoltage of at least 30 V DC. The input resistance is 290k ohms. The transmitter power supply can be connected to L1+, L1- and/or L2+, L2-.
​Characteristics and advantages
8 channels for 0… 20 mA, 4-20 mA, 0-10 V or 2-10 V DC, single-ended unipolar input
1 group of 8 channels, isolated from the ground
12-bit resolution
The input shunt resistor is protected to 30 V by a PTC resistor
Analog input short-circuit protection to ZP or +24 V
The input can withstand HART communication.
