Model Number:1746-HSTP1

Manufacturer:Allen Bradley

Stepper Motor Compatibility:Up to 50VDC, 2A per channel

Input Voltage Range:24VDC

Operating Temperature Range:-20°C to +60°C

Communication Interface:Modbus RTU

Power Consumption:Max 1W

Dimensions:120mm x 100mm x 40mm

Enclosure Type:IP20

Mounting Method:Panel mount

Isolation:1000VAC

Environmental Standards Compliance:UL, CE

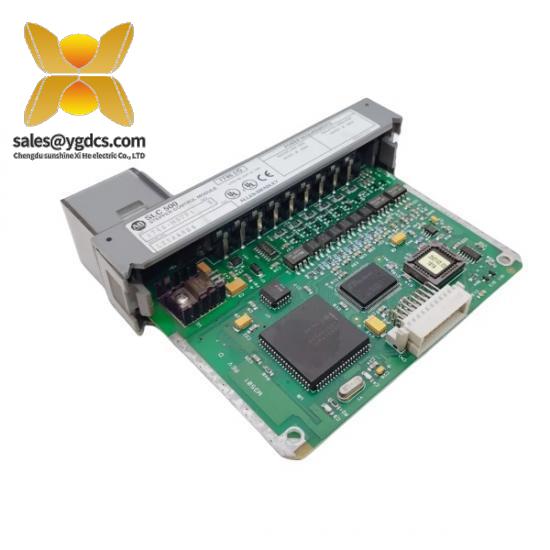

    The Allen Bradley 1746-HSTP1 Stepper Control Module is engineered for seamless integration into a wide range of industrial automation systems. This compact yet powerful module offers precise control over stepper motors, ensuring efficient and reliable operation in various manufacturing environments.

    With its robust design, the 1746-HSTP1 is capable of handling high-frequency command sequences, making it ideal for applications requiring rapid acceleration and deceleration. Its compatibility with single-phase bipolar stepper motors allows for versatile use in diverse machinery setups.

    Featuring a modular design, this control module can be easily installed on a panel and connected via its standard Modbus RTU interface, simplifying integration with existing PLC systems. The open collector output ensures compatibility with a broad range of load types and sizes.

    The 1746-HSTP1 Stepper Control Module operates within a temperature range of -20°C to +60°C, ensuring reliable performance under varying environmental conditions. Its IP20 enclosure rating provides protection against dust and light splashes, safeguarding against potential damage in industrial settings.

    Engineered for durability and efficiency, the Allen Bradley 1746-HSTP1 Stepper Control Module is an essential component for enhancing the precision and productivity of industrial automation processes. Its compact size and straightforward installation make it an attractive choice for modern factory floors.
