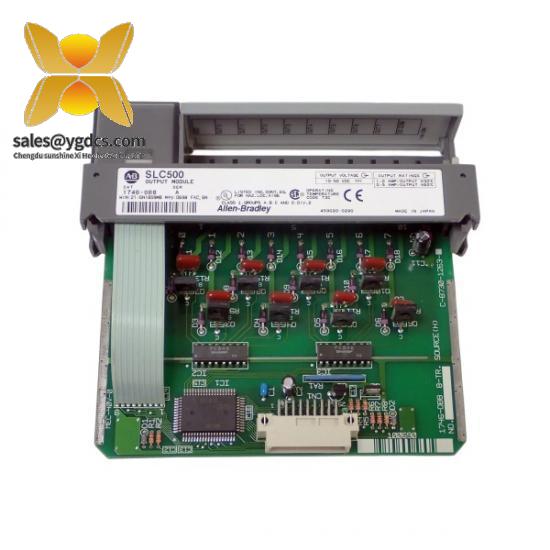

Model Number:1746-OB8

Manufacturer:Allen Bradley

Output Channels:8

Type:Digital DC Output

Voltage Range:5VDC to 50VDC

On-State Voltage Drop:1.2V

Off-State Output Leakage:1mA

Load Capacity:1mA

Current Rating:Continuous: 0.25A @ 60°C per channel

Isolation:Communication circuits: 500VDC, Backplane: 1500VAC

Temperature Range:0°C to 60°C

Environmental Conditions:5% to 95% relative humidity, non-condensing

    Engineered for reliability and efficiency, the 1746-OB8 Output Module seamlessly integrates into the SLC 500 system, enhancing productivity with its robust performance capabilities. Its compact design ensures minimal footprint, facilitating easy installation and maintenance.

    Featuring a versatile common anode/source configuration, this module supports various output types, accommodating diverse industrial control scenarios. It offers exceptional current handling capacity, enabling precise control over actuators and solenoids.

    Built with premium materials, the 1746-OB8 is designed to withstand harsh industrial conditions, ensuring long-lasting service life and minimal downtime. Its high insulation resistance guarantees reliable signal transmission even in challenging environments.

    With a wide operating temperature range and high humidity tolerance, this output module is suitable for a broad spectrum of industrial settings. It operates efficiently across a variety of climates, from cold workshops to humid factories, maintaining consistent performance.

    Installation and maintenance are straightforward thanks to the intuitive design and user-friendly documentation provided. The 1746-OB8 is compatible with the latest SLC 500 firmware, allowing for seamless updates and integration with advanced control strategies.
