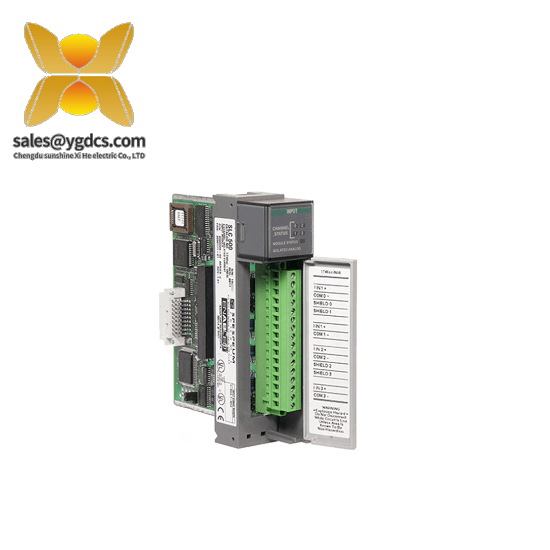

Model Number:1746sc-INI4vi

Manufacturer:Allen Bradley

Channels:4 (Input)

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Maximum)

Input Range:-20 To 20 MA

Absolute Input Current:-30 To 30 MA (Maximum)

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Range (DC):-10 To 10 VDC – 1 LSB

Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95% RH

    Engineered for unparalleled precision, the Allen Bradley 1746sc-INI4vi analog input module offers unmatched accuracy in data acquisition, essential for optimizing industrial processes.

    Featuring a common mode voltage range from -20 to 20 V, this module ensures reliable signal handling across diverse industrial environments.

    With support for both 7.5 VDC and 7.5 VAC RMS absolute input voltages, it caters to a wide array of industrial standards, enhancing its compatibility and versatility.

    Designed with an input range from -20 to 20 MA, the 1746sc-INI4vi is capable of handling precise current measurements, critical for high-fidelity data capture in industrial automation.

    Equipped with overvoltage protection of 7.5 VAC RMS, the module safeguards against electrical spikes, ensuring robust performance in demanding conditions.

    Operating within a temperature range of 0 to 60 DEG C, this module is suitable for a broad spectrum of industrial applications, from cold storage facilities to hot manufacturing plants.
