Manufacturer:Allen Bradley

Model:1756-IF16H

Module Type:Analog Input

Channels:16

Differential Voltage/CURRENT Input:Yes

Data Formats:Choice of three

Input Ranges:Multiple current and voltage options

Module Filter:Standard

Real-time Sampling:Yes

Fault Detection:Under range, over range

Process Alarms:Rate, wire-off

Communication Protocol:HART

Power Consumption:6.2 Watts

Temperature Range:0 – 60 DEG C

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Connection:Ethernet/IP Bridge

Ethernet Compliance:802.3

USB Port:Included

Power Supply:3 MA At 24 VDC

Mounting:Chassis

Communication Speed:10/100 MBPS

Enclosure Type:Open Type

Isolation:30 V Continuous

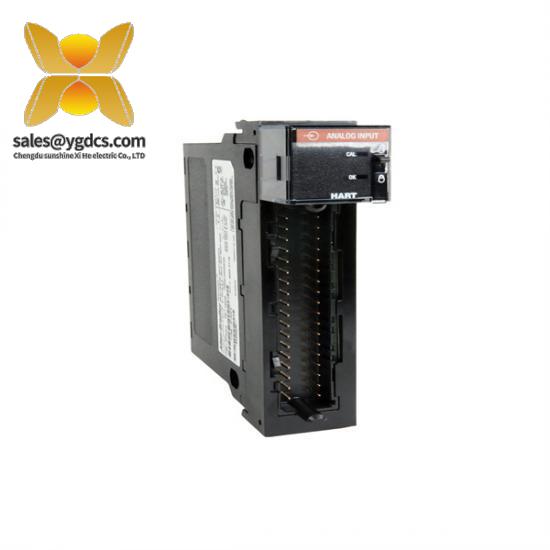

    Unleash the power of industrial automation with the Allen-Bradley 1756-IF16H ControlLogix Analog Input Module, specifically engineered to provide unparalleled precision in data acquisition.

    Featuring 16 versatile input channels, this module supports both differential voltage and current inputs, making it adaptable to a wide range of industrial applications.

    With multiple data formats and a choice of input ranges, the 1756-IF16H ensures seamless integration with existing systems while enhancing accuracy and reliability.

    Equipped with an open-type enclosure and robust environmental conditions, this module is designed to withstand challenging industrial environments, ensuring continuous operation under varying conditions.

    Benefit from the speed and reliability of Ethernet/IP communication, coupled with HART interface capabilities for advanced remote monitoring and control, streamlining your operational processes.

    Experience enhanced system connectivity and improved efficiency with the Allen-Bradley 1756-IF16H ControlLogix Analog Input Module, a game-changer for modern industrial automation.
