Number of Inputs:8

Input Types Supported:Digital

Operating Voltage Range:24 VDC

Communication Protocol:ControlNet, DeviceNet, EtherNet/IP

Processing Speed:Up to 200 K instructions per second

Environmental Temperature Range:-40°C to +70°C

Dimensions (W x H x D):2.67 x 4.45 x 1.39 inches

Weight:0.4 lb

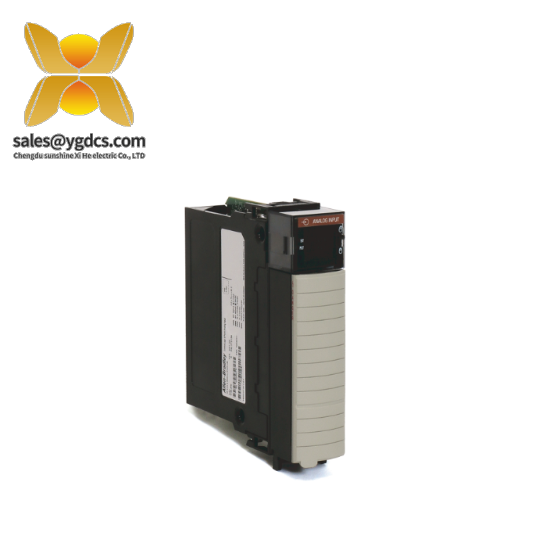

    The Allen-Bradley 1756-IF8I ControlLogix Analog Input Module is engineered to meet the stringent demands of industrial environments, offering unparalleled reliability and accuracy. With its 8-channel design, it efficiently acquires and processes analog signals from sensors, making it an indispensable component in various automation systems.

    This module supports both differential voltage and current inputs, providing flexibility in application scenarios. It comes equipped with multiple data formats and adjustable input ranges, ensuring compatibility with a wide array of sensor outputs. The real-time sampling feature guarantees immediate response to changes in input conditions, enabling quick adjustments in system operations.

    Designed for robust performance, the Allen-Bradley 1756-IF8I can withstand challenging environmental conditions, including varying temperatures and humidity levels. Its open-type enclosure ensures reliable operation in dusty or corrosive environments, while the shock and vibration resistance guarantees stability even under harsh conditions.

    Equipped with advanced features like under-range and over-range detection, this module safeguards against potential system malfunctions caused by signal anomalies. The inclusion of process alarms further enhances safety and efficiency by alerting operators to critical changes in operational parameters, allowing timely corrective actions.

    With the integration of ControlNet Bridge communication, the Allen-Bradley 1756-IF8I seamlessly connects with other industrial devices, facilitating seamless data exchange and system integration. This feature-rich module is a testament to Allen-Bradley’s commitment to delivering cutting-edge solutions for modern industrial automation.
