Input Type:Analog

Signal Range:-10V to +10V

Sampling Rate:100 samples per second

Power Consumption:Max 100mA

Operating Temperature:-40°C to +70°C

Communication Interface:RS-485 Modbus RTU

Mounting Type:Panel mount

Dimensions:58.4mm x 95.3mm x 91.4mm

Weight:0.2kg

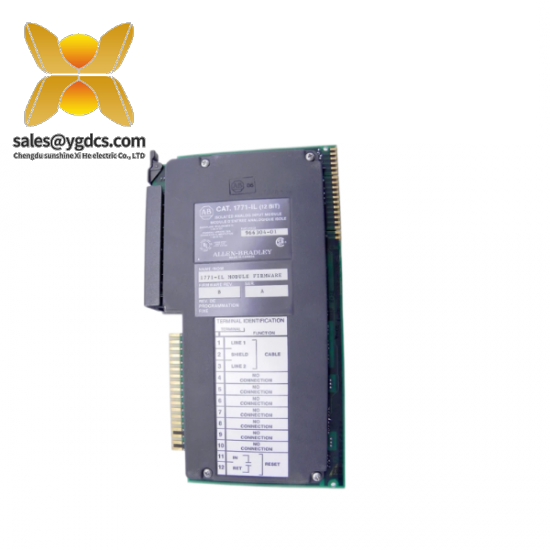

    Engineered for reliability and accuracy, the Rockwell Automation 1771-IL Analog Input Module seamlessly integrates into complex industrial control systems. Its robust design ensures stable performance under various environmental conditions, making it suitable for applications in harsh industrial settings.

    Featuring a wide signal range, this module supports both voltage and current inputs, providing flexibility in connecting different types of sensors and devices. It is capable of converting analog signals into digital values, which can then be processed by the PLC for real-time control and monitoring.

    With its efficient power consumption and compact size, the 1771-IL is an ideal choice for space-constrained installations. The module’s DB-9 connector simplifies wiring, enhancing system reliability and ease of maintenance.

    Equipped with an RS-485 communication interface, the Analog Input Module facilitates seamless data exchange between the PLC and other devices on the network, enabling advanced automation strategies and remote diagnostics.

    The 1771-IL is compatible with the latest versions of Rockwell’s software suite, ensuring compatibility and ease of integration with existing control systems. Its user-friendly programming interface allows for quick setup and configuration, minimizing downtime during installation and maintenance.
