Number of Analog Inputs:16

Analog Input Range:0 to 20 mA, 0 to 10 VDC

Digital Inputs:8

Sampling Rate:Up to 500 Hz

Power Supply Compatibility:12-24 VDC

Communication Interface:RS-485 Modbus RTU

Operating Temperature:-40°C to +85°C

Enclosure Rating:IP20

Dimensions (WxDxH):117 x 140 x 73 mm

Weight:0.55 kg

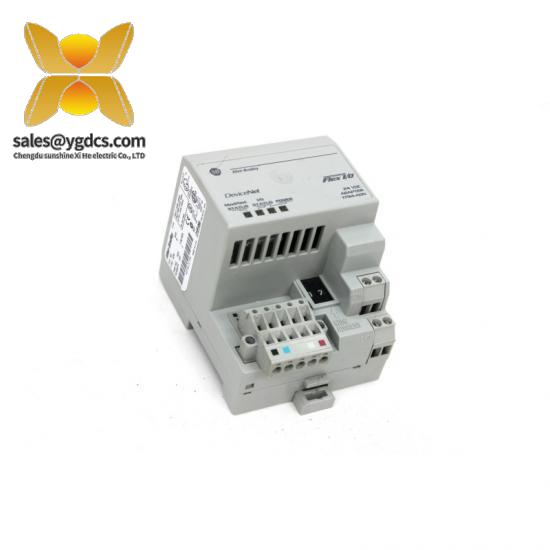

    The Rockwell Automation 1794-ADN module boasts a compact design optimized for seamless integration into a variety of industrial environments. It supports a wide range of input types, ensuring compatibility with numerous sensor applications.

    Equipped with advanced signal processing capabilities, the module delivers accurate and reliable data acquisition, crucial for real-time monitoring and control systems in manufacturing processes.

    Operated at temperatures from -40°C to +70°C, it withstands harsh industrial conditions, making it suitable for outdoor or extreme environment installations.

    The module utilizes the robust Modbus RTU communication protocol, facilitating easy connectivity with other devices within the automation network, enhancing system interoperability.

    Crafted with durability in mind, the 1794-ADN features an IP20 enclosure type, ideal for panel mounting applications, ensuring protection against dust and light splashes.
