Number of Terminals:32

Material:Corrosion-resistant steel

Operating Voltage:12-24V DC

Operating Current:20A maximum per terminal

Insulation Resistance:1000MΩ at 500V DC

Temperature Range:-40°C to +70°C

Certifications:UL, CE, CSA

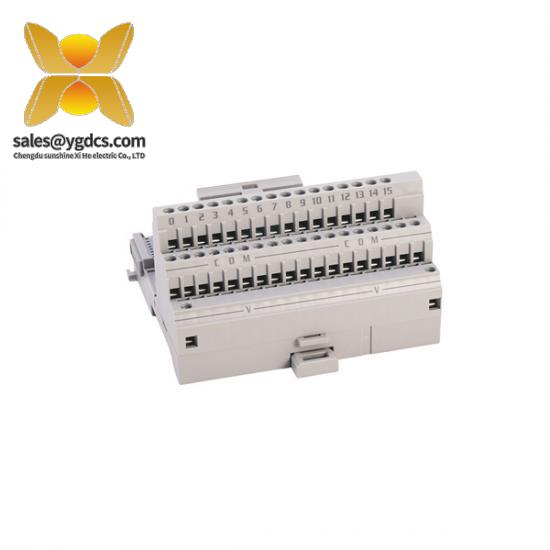

    The Allen-Bradley 1794-TB32 Terminal Base Unit is meticulously crafted to enhance the operational efficiency of industrial control systems. This robust unit is equipped with advanced connectivity options, ensuring seamless integration with various PLCs and other automation equipment.

    Featuring a dual-color power status indicator, the 1794-TB32 provides immediate visual feedback on power supply status, facilitating quick troubleshooting and maintenance procedures. This feature ensures uninterrupted system operation and improved safety standards in industrial settings.

    Designed with precision and durability in mind, this terminal base unit supports multiple base units, offering unparalleled flexibility for customization and scalability. It is compatible with Allen-Bradley’s comprehensive range of modules, enabling a wide array of applications from basic to highly complex control scenarios.

    Equipped with a bandwidth of up to 2.62 Hz, the 1794-TB32 is capable of handling high-frequency signals, making it suitable for real-time monitoring and control processes in demanding industrial environments. Its compact design ensures minimal footprint, optimizing space usage in control cabinets and reducing installation complexity.

    The terminal base unit comes with a specified weight of 0.4 kilograms, ensuring easy handling during installation and maintenance activities. Additionally, its corrosion-resistant materials guarantee longevity and performance under harsh industrial conditions, reducing downtime and maintenance costs over time.
