Input Voltage:324-528V RMS, 3-phase

Nominal Voltage:360/480V

Input Frequency Range:47-63 Hz

Peak Current (RMS):15.3 Amperes

Continuous Output Power:3.9 kW

Efficiency:98%

Internal Shunt Resistor:115 Ohms

Capacitance:150 μF

Capacitive Rating:200,000 A (RMS) Symmetrical

Bandwidth Velocity Loop:500 Hz

Bandwidth Current Loop:1300 Hz

PWM Frequency:8 kHz

Continuous Current (RMS):6.1 Amperes

Continuous Current (0-Peak):8.6 Amperes

Power Dissipation:57-126 Watts

Weight:22.3 lbs (10.1 kg)

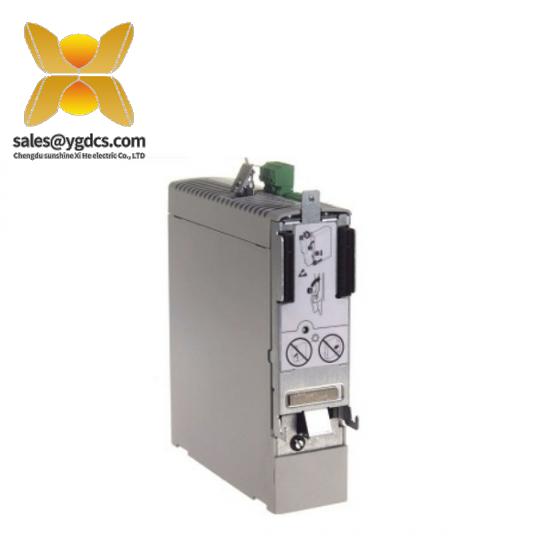

    The Allen-Bradley 2094-BM01-S is an integral part of the Kinetix 6000 Multi-Axis Drive Servo system, designed to enhance machine performance and productivity. With its robust design and advanced safety features, this module ensures reliable and efficient operation in industrial environments.

    This axis module supports up to seven (7) for each 8-axis power rail, making it ideal for multi-axis applications. It operates with a wide input voltage range of 324-528V rms, 3-phase, ensuring flexibility and compatibility with various industrial systems.

    Safety is a top priority with the 2094-BM01-S, featuring an integrated Safe Torque Off (STO) function that complies with Safety Integrity Level (SIL) 3 and Performance Level (PLe). This ensures personnel protection and minimizes downtime due to unexpected faults.

    The module’s high efficiency of 98% and low heat dissipation of 57-126 Watts make it energy-efficient and cost-effective, reducing operational costs and improving overall machine performance. Its robust design and reliable operation make it suitable for demanding industrial applications.

    With a continuous output power of 3.9 kW and peak current ratings of 8.6 A, the 2094-BM01-S delivers consistent and powerful performance, meeting the demands of modern industrial automation.
