Operating Voltage:100-240VAC, 1-Phase

Input Current:9 A

Output Voltage:100-240VAC

Output Power:Continuous 1kW

Continuous Output Current:5A

Intermittent Output Current:15A

Frequency Range:47-63 Hz

Dimensions:144.27 x 72.64 mm

Communication Ports:RS232, RS485, DeviceNet

General Purpose Inputs:8 selectable

General Purpose Outputs:4 selectable + Relay

Multi-turn Absolute Encoders Support:Embedded

External Logic Power Supply:Option

RoHS Compliance:Not compliant

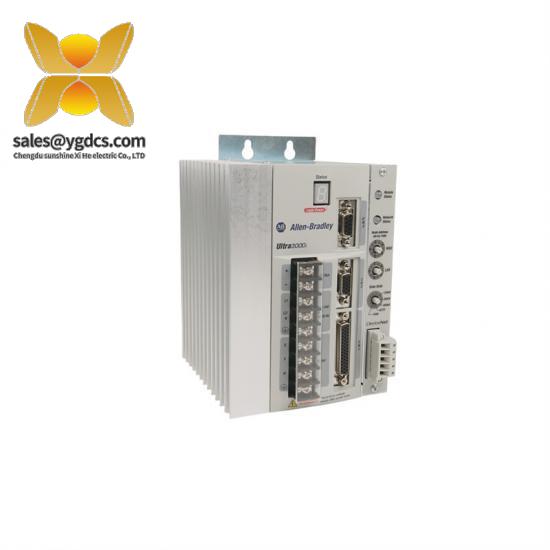

    The Allen-Bradley 2098-DSD-010X-DN Digital Servo Drive is engineered for seamless integration into a wide range of industrial systems, offering unmatched precision and reliability. Its compact design, measuring at 7.8 x 5.68 x 2.86 inches (198.12 x 144.27 x 72.64 mm), makes it ideal for space-constrained environments without compromising on performance.

    Featuring an input voltage range of 100-240V AC and an input frequency of 47-63 Hz, this servo drive ensures compatibility with various power sources and is suitable for a broad spectrum of industrial applications. The 1.5 kW continuous output power and 22 A intermittent output current guarantee robust operation and quick response times.

    With its eight selectable general-purpose inputs and four selectable general-purpose outputs, including a dedicated RS232 and RS485 communication port, the Allen-Bradley 2098-DSD-010X-DN facilitates easy integration with existing control systems. This drive supports multi-turn absolute encoders, enhancing accuracy and enabling precise position control even under power loss scenarios.

    Built with state-of-the-art technology, the Allen-Bradley 2098-DSD-010X-DN is equipped with advanced protection features, including bus overvoltage and shunt monitoring, ensuring operational safety and longevity. Its modular design allows for easy customization and expansion to meet evolving industrial demands.

    Experience the future of motion control with the Allen-Bradley 2098-DSD-010X-DN Digital Servo Drive. Designed for efficiency, reliability, and innovation, it is the perfect choice for enhancing productivity and precision in your automation projects.
