Number of Channels:16

Analog Input Type:Voltage

Signal Range:-10V to +10V

Sampling Rate:Up to 500Hz

Communication Protocol:ControlNet

Power Consumption:Max 3.5W

Operating Temperature:-40°C to +85°C

Mounting Style:Panel Mount

Enclosure Type:IP20

Connection Type:BNC Connectors

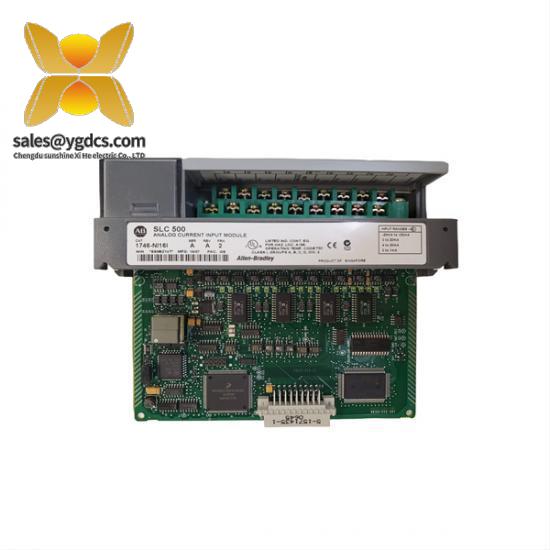

    Engineered for demanding industrial applications, the Allen Bradley SLC500 1746-NI16I offers unparalleled reliability and precision. Its robust design ensures longevity and consistent performance in harsh environments.

    This module supports a variety of input types, including standard 4-20 mA, 0-10 V, and thermocouple connections, making it compatible with a wide array of sensors and actuators commonly found in manufacturing and automation processes.

    With a common mode voltage range of +/- 10.25 V and a maximum input voltage without damage of +/- 8 V between any two signal terminals, the 1746-NI16I ensures accurate readings even under varying electrical conditions.

    Featuring a current rating of 125 MA at 5 VDC and 75 MA at 24 VDC, the backplane provides sufficient power to support most industrial control systems. The current input can handle up to +/- 30 MA, ensuring compatibility with various devices requiring current-based inputs.

    Equipped with 500 VAC isolation for 1 second, this module guarantees reliable operation by preventing interference and ensuring safety in high-voltage environments. Its open-type enclosure and temperature rating from 0 to 60 DEG C ensure durability and performance in diverse industrial settings.
