Technology:SSI encoder interface

Channels:1 encoder interface

Encoder Connection:Binary input: D+, D-; Binary output: Cl+, Cl-

Power Supply:24V DC via power contacts

Current Consumption:Typically 20mA without encoder

Encoder Supply:24V DC via power contacts

Current Consumption K-bus:Typically 25mA

Weight:Approximately 60g

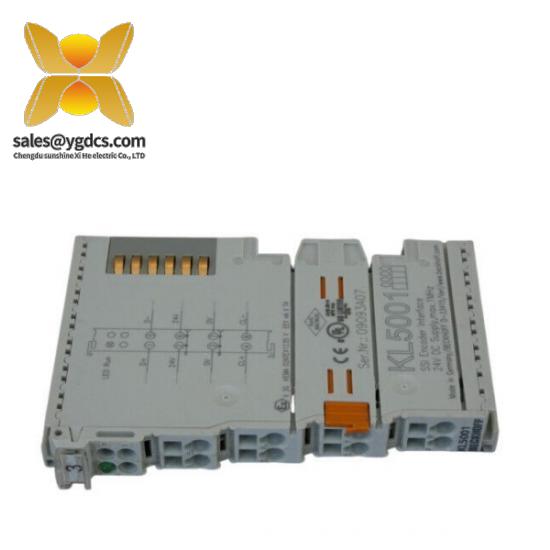

    The Beckhoff KL5001 Bus Terminal is engineered for optimal integration into complex industrial automation setups, ensuring seamless operation with precision encoder devices.

    Featuring a robust SSI encoder interface, this terminal module is capable of handling high-speed data transfer rates for accurate position and speed measurement.

    Designed for efficiency, the KL5001 utilizes a direct power supply of 24V DC through its power contacts, providing reliable and consistent energy delivery to the connected encoder.

    With a typical current consumption of 20mA without an encoder and 60mA when powered up, the KL5001 is resource-efficient, minimizing system load and maximizing operational reliability.

    The module’s quick response time of approximately 4ms ensures swift communication between the encoder and the control system, enhancing the overall performance of motion control applications.
