Extended Product Type:Other

Product ID:7CM211.7

B&R Type Designation:Other

Combination Module Type:2003

Number of Inputs:8

Supply Voltage (DC):24 V

Response Time:4 ms

Sink Operation:Yes

Counters:3 one-channel or 2 two-channel

Incremental Encoders:2

Frequency:20 kHz

Transistor Outputs:8

Supply Voltage (DC) for Outputs:24 V

Current per Output:0.5 A

Comparator Function:Yes

Short Circuit Protection:Yes

Input Range:2 inputs, ±10 V / 0 to 20 mA

Resolution:12-bit

Outputs:[{“Range”:”±10 V”,”Resolution”:”12-bit”,”Quantity”:”2″}]

Ordering Terminal Blocks:Separately (2x TB718)

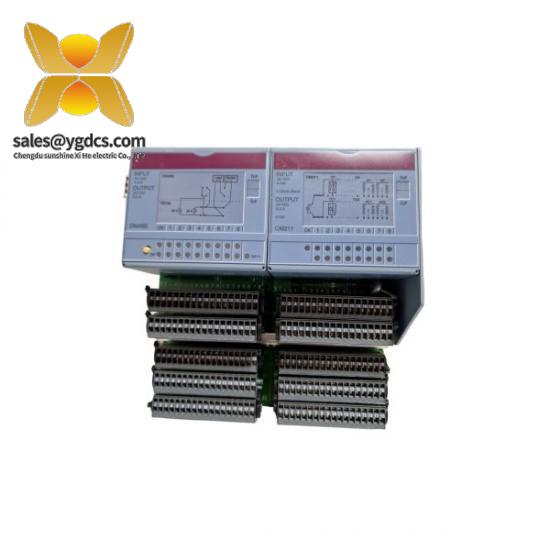

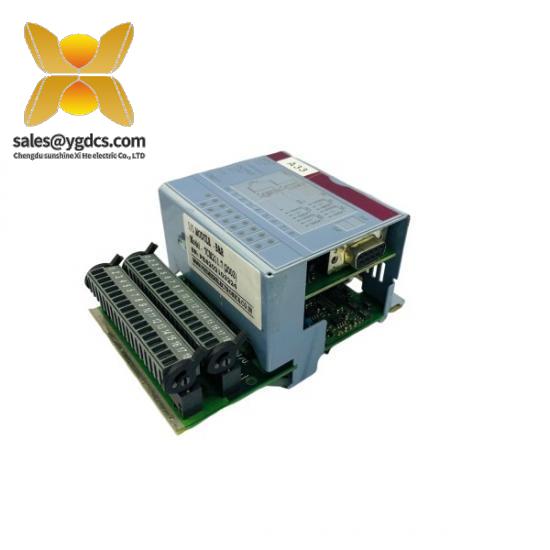

    The B&R 7CM211.7 Output Module is engineered to deliver exceptional performance in industrial automation environments, offering a robust solution for both input and output control tasks.

    Featuring 8 digital inputs compatible with 24V DC, this module ensures precise signal detection with a quick response time of 4 milliseconds, enhancing system responsiveness and reliability.

    With the capability to support up to three single-channel or two dual-channel counters, or two incremental encoders operating at 20 kHz, it caters to a wide range of monitoring and control requirements.

    Equipped with 8 transistor outputs, each rated for 24V DC and capable of handling 0.5A current, this module provides the necessary power for driving actuators, solenoids, and other devices efficiently.

    The inclusion of a comparator function and short-circuit protection safeguards against potential damage from overloads or unexpected electrical conditions, ensuring operational safety and longevity.

    For ease of installation and flexibility, the B&R 7CM211.7 Output Module requires separate ordering of terminal blocks (2x TB718), allowing for a customized wiring configuration tailored to specific application needs.
