Product introduction：

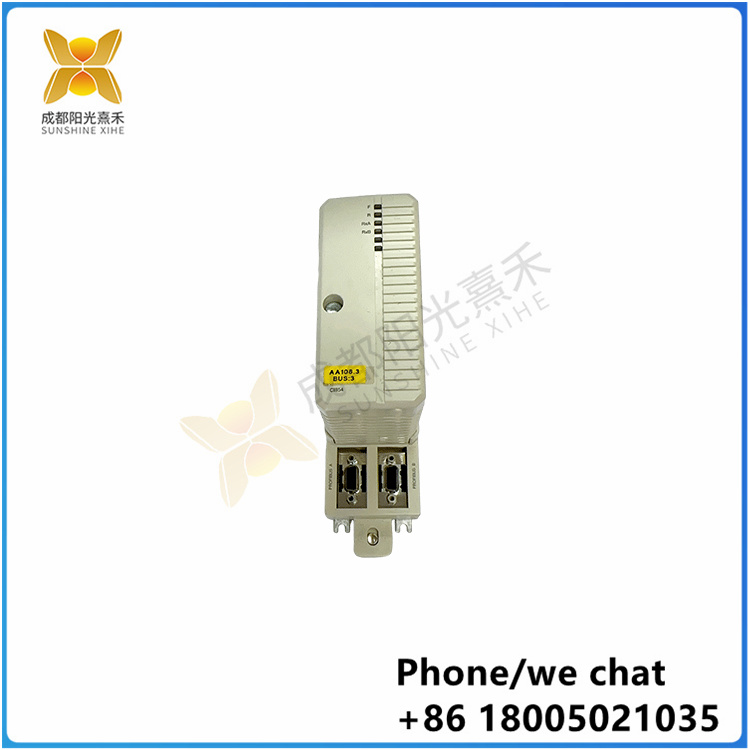

CI854K01 3BSE025961R1 is a communication module produced by ABB company. The details are as follows:

Product Description: This module is a powerful communication module, supporting a variety of communication protocols and the number of nodes, suitable for different industrial application scenarios, with high temperature, low temperature working ability and remote diagnosis function

Communication protocols: Support a variety of fieldbus protocols, such as Profibus DP-V1, PROFInet IO, Modbus TCP, etc

Node support: Up to 120 nodes can be supported, each node can have 244 inputs and 244 outputs

Operating temperature: The module can operate in the temperature range from -25°C to +60°C

Supply voltage: 24 VDC, current is about 0.4 A

Operating system compatibility: Supports multiple operating systems, such as Windows and Linux

Mechanical dimensions: Height 177 mm, width 35 mm, depth 145 mm

Programming tools: Support AC500 PLC, Automation Builder and other programming tools

Data transmission rate: Supports a maximum transmission rate of 12 Mbit/s

Remote diagnosis: Supports remote diagnosis and debugging

In addition, another piece of information indicates that ABB CI854K01 3BSE025961R1 is a communication interface module designed for industrial automation systems, providing a reliable and efficient connection between the control system and field equipment
. Product parameters include Ethernet /IP communication protocols, number of channels, 24 VDC supply voltage, operating temperature range from -40 ° C to +70 ° C, and size 112 × 99 × 27mm

  The REF615 IEC is a feeder protection and measurement and control device from ABB that provides the following features and functions:

Highly sensitive and selective ground fault protection: The REF615C-E is designed for the protection, control, measurement and monitoring of utility and industrial distribution systems and can accommodate neutral ungrounding and neutral resistance or impedance grounding of the grid

Multiple standard configurations: The REF615 comes in 12 standard configurations for common feeder protection and measurement and control applications and can be quickly and easily combined to meet different application requirements

Multiple communication protocols are supported, including the IEC61850 communication standard, Parallel Redundancy Protocol (PRP) and High Availability Seamless Redundancy Protocol (HSR), as well as the DNP3, IEC 60870-5-103 and Modbus® protocols. The Profitbus DPV1 protocol is also supported through the SPA-ZC 302 protocol adapter

Key benefits: Integrated protection, control, monitoring and management functions, with a wide range of protection and control functions, supporting sensors or traditional CT, PT. The REF615 is designed for quick installation and testing, with a large LCD screen and a single line chart display to provide thoughtful product life cycle service

CI522A 3BSE018283R1 AF100 Interface Module, this module is a redundant communication interface for the S800 I/O
Application: This module provides flexible and secure protection for electrical installations
And has a wide range of communication features
The circuit breaker can be connected to the industrial communication field
Supports Modbus RTU communication protocol
Allows the exchange of data and information with other industrial electronic devices

The 5SHX1960L0006 is a smart sensor module produced by ABB with a variety of functions and application areas. Here are some details about this module:

In the field of energy and power: This smart sensor can be used to monitor and control various devices and steps in the system, such as wind turbines, transformers, distribution systems, etc., to improve energy efficiency and reduce energy waste by monitoring the operating status of equipment and the parameters of the power system in real time

Manufacturing: In equipment such as automated production lines and robots, the sensor improves production efficiency and human resource utilization by monitoring parameters such as the position and speed of robots in real time

Traffic transmission: Sensors are used to monitor the status of vehicles, roads, traffic lights and other equipment, and improve the safety and efficiency of traffic transmission by real-time monitoring of the operating status of vehicles and road smoothness and other parameters

Environmental monitoring: In the field of environmental monitoring, the sensor is used to monitor air quality, water quality, noise and other environmental parameters, through real-time monitoring of changes in environmental parameters, timely detection of environmental problems and take appropriate measures

Automated warehouse: In the automated warehouse, the sensor is used to monitor the location, quantity and other parameters of the goods, through real-time monitoring of the status and location of the goods, to achieve automated management and sorting of the goods, improve the efficiency and accuracy of warehouse management

In addition, the 5SHX1960L0006 May also have thyrior control capabilities for precise control and regulation of power systems or circuits, with high reliability, high electromagnetic immunity, and a simple control interface with state feedback AC or DC supply voltage for mid-frequency and wide temperature range optimization

The PP886 3BSE092980R1 is a standard panel produced by ABB with the following technical specifications and features:

Product model: 3BSE092980R1, belongs to ABB PP886 series

Screen type: 1280×800 widescreen (16:10) display, suitable for applications requiring a wide field of view display

Configuration requirements: Configuration is required by Panel Builder 800 Version 6.2, a panel configuration software from ABB

Protection Suggestion: To protect the front panel, the RX886 Touch cover is recommended

Product size: 410 mm width, 286 mm height and 61 mm net depth, net weight 4.15 kg

Environmental standards: comply with the RoHS standard of EU Directive 2011/65/EU, which belongs to WEEE Category 2 and applies to electronic equipment containing screens

Battery information: Contains a lithium-ion battery, type push-button battery, weighing 2.5g

Operating temperature range: -10°C to +60°C, protection class IP65, suitable for use in a variety of industrial environments

Interface and connectivity: 2 10/100 Base-T Ethernet ports (RJ 45), 2 USB 2.0 ports and serial ports (RS232, RS422/485, RS485)

Hardware configuration: Includes ARM9 processor (1 GHz), 1 GB main memory, and 2 GB SSD, of which 1.5 GB can be used for application storage

The PP886 3BSE092980R1 panel is suitable for multiple control system integrations-including 800xA, Compact Product Suite, and Freelance systems-with easy-to-use HMI capabilities and multiple connectivity options. Enables flexible integration into existing or new automation projects

The SUE3000 1VCF750090R0804 is a High Speed switching device (HSTD) from ABB with the following features and parameters:

Fast switching capability: The device enables quick automatic switching to backup power, ensuring continuous supply to customers and protecting production from costly downtime. The typical transmission time is about 100 milliseconds, depending on the circuit breaker time, fault detection time, and the state of the incoming lines involved

Multiple switching modes: The SUE3000 offers four different switching modes, including fast switching, switching at first phase conformance, residual voltage dependent switching and time delay switching

Applications: SUE3000 equipment is suitable for a variety of industrial applications, including conveying systems, pump and fan control, machine tools, cranes and test and measurement equipment

Key benefits include reliable, safe and uninterrupted power supply, improved plant equipment utilization, protection against production disruptions, lower investment and operating costs compared to UPS systems, smaller installation space requirements, and easy integration of existing and new switchgear

Key features: includes configurations for two to three circuit breakers, flexible communication protocols, fault recording and watchdog self-testing, high-speed exits and integrated security features

Technical specifications: SUE3000 1VCF750090R0804 also has specific technical specifications, such as power supply voltage 24V DC, output voltage 24V DC, output current 30A, efficiency greater than 90%, output voltage accuracy ±0.5%, operating temperature range -20°C to 60°C, protection class IP20, It measures 220 x 112 x 35 mm and weighs 2.7 kg
