DO801 16 channel / 24 V digital output modul
Isolation groups are isolated from the ground
Output load < 0.4Ω
Current limiting Short circuit protection Limited current output
Maximum field cable length 600 meters (656 yards)
Rated insulation voltage 50 volts
Dielectric test voltage 500 V AC
Typical power consumption is 2.1 W
Categories: ABB
Email：18005021035@163.com
Phone：+86 18005021035
Name：BeiLin
Content details
Product introduction：
Detailed data
Isolation groups are isolated from the ground
Output load < 0.4Ω
Current limiting Short circuit protection Limited current output
Maximum field cable length 600 meters (656 yards)
Rated insulation voltage 50 volts
Dielectric test voltage 500 V AC
Typical power consumption is 2.1 W
Current consumption +5 V Modulebus 80 MA
Current consumption +24 V Modulebus 0
Current consumption +24 V external 0
Supported wire size Solid: 0.05-2.5 mm², 30-12 AWG
Stranding: 0.05-1.5 mm², 30-12 AWG
Recommended torque: 0.5-0.6Nm
Strip length 6-7.5mm, 0.24-0.30 inch

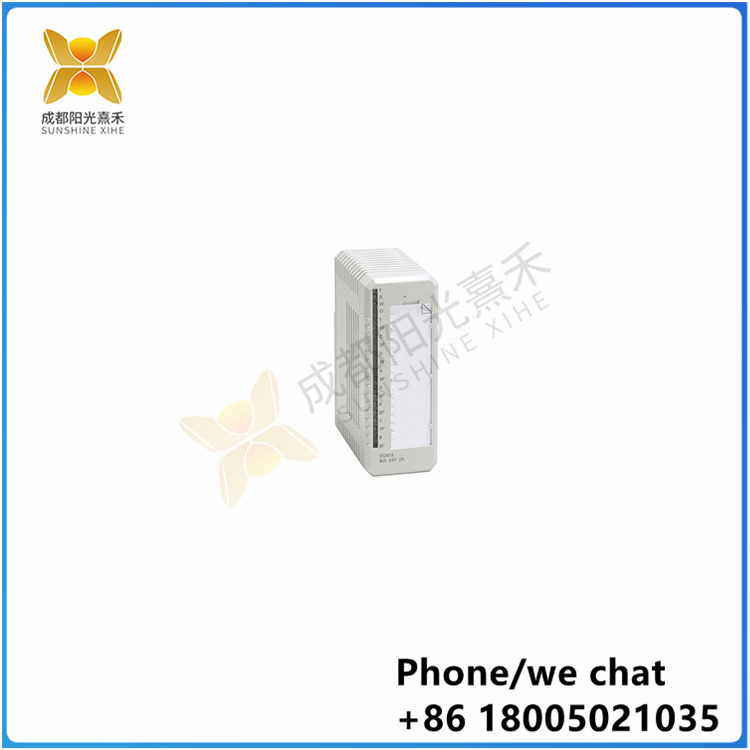

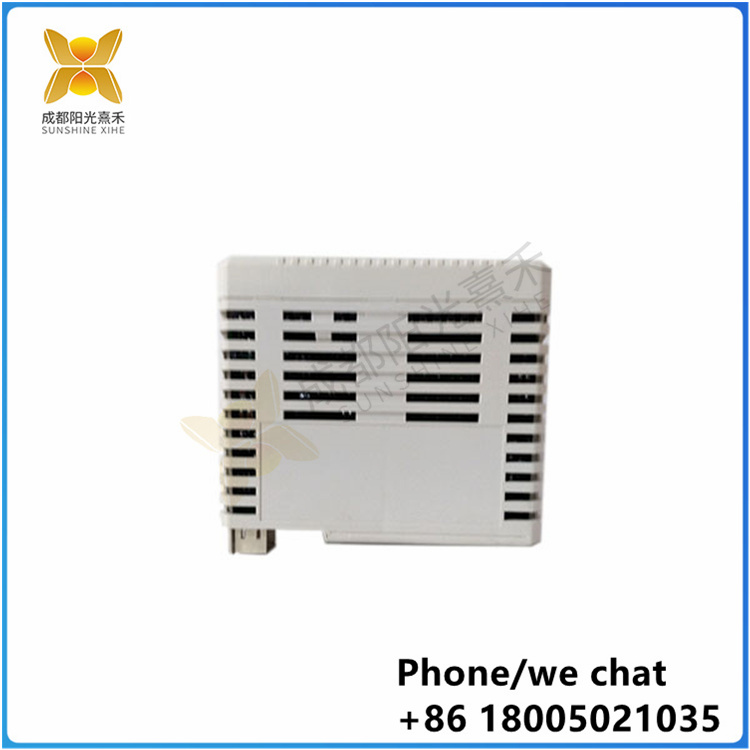

The DO801 is a 16-channel 24 V digital output module for the S800 I/O. The output voltage ranges from 10 to 30 V with A maximum continuous output current of 0.5 A. The output has short circuit, overvoltage and overtemperature protection. The output is in a quarantine group. Each output channel consists of high side drivers for short circuit and overtemperature protection, EMC protection elements, inductive load suppression, output status indicator leds and optical isolation gates.
Characteristics and advantages
16 channels for 24 V DC current source output
One isolation group, 16 channels each
Output status light
OSP sets the output to a scheduled state in case of a communication error
Ground and 30 V short circuit protection
Protection against overpressure and overheating
Process and power connection via removable connectors
