Product introduction：

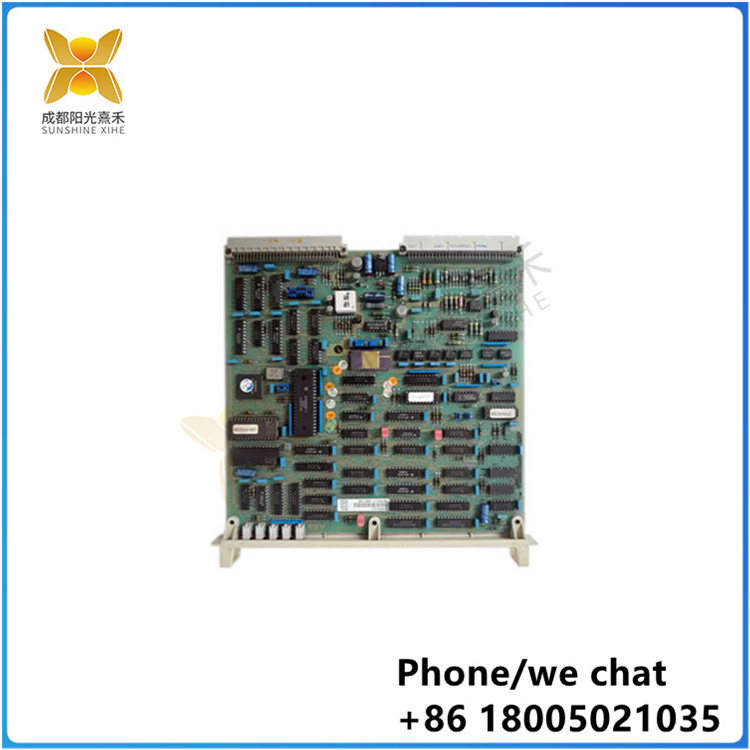

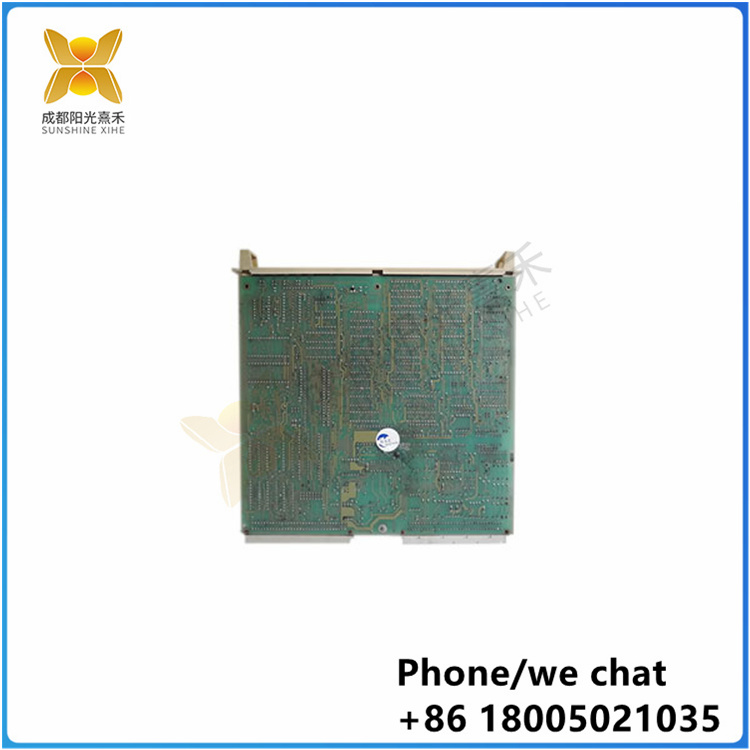

The DSDP140B 57160001-ACX is a high-performance counter board module from ABB, designed for industrial automation control systems. Here are some of its key features and parameters:
Product name: ABB DSDP140B 57160001-ACX counter board module
Design: Using high-speed counting technology and advanced control technology, effectively reduce energy consumption while maintaining high precision measurement
Input voltage: 24VDC or 125VDC
Output voltage: 24VDC
Maximum output current: 10A
Operating temperature range: -40°C to 70°C
Product size: 120mm x 60mm x 80mm
Product weight: 0.5kg
Sampling period: 100ms
Max I/O point: 384
Communication protocol: Support Modbus, Ethernet, OPC, etc
Counting frequency: high-speed counting
Input signal type: A/AB phase input, monopulse input
Counting range: Wide counting range
Output mode: digital output, analog output
Mounting method: DIN rail mounting

The PM783F 3BDH000364R0002 is a CPU module produced by ABB and belongs to the AC 800F controller series. Here are some of its key features and functions:
High Performance processor: The module is equipped with a high performance processor that enables fast cycle times and is suitable for handling complex control logic and data processing tasks
Memory capacity: The CPU has 10 MB of memory, of which 2 MB is a backup battery, ensuring data persistence and security
Communication interface: The module is equipped with an onboard 100 Mbit/s Ethernet connection for communication between the controller, operator station and engineering tools, and has two serial line interfaces, one for Modbus communication and the other for diagnostics
Security: The controller can be keylocked to enhance security and prevent the controller from downloading applications and firmware
Front Panel display: Small front panel display displays status and diagnostic information directly on the module
I/O module connection: The S700 I/O module can be plugged directly into the CPU module or used as a remote I/O via PROFIBUS, and the controller can be connected to up to eight modules
High-speed communication: Communication between the CPU and the local S700 I/O module is very fast, I/O scan times can be as low as 2 milliseconds, and short circuit and break detection is implemented in each channel
