Product introduction：

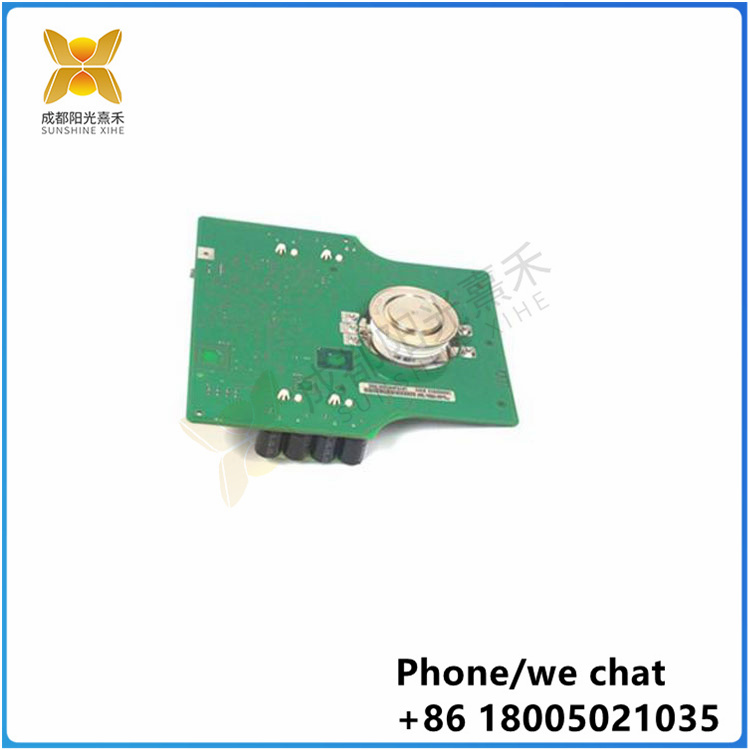

The DSSB140 48980001-P is a battery cell controller from ABB, designed for battery management systems to control and monitor the charging and discharging process of battery cells. Here are some of its key features and functions:
High precision control: The controller can precisely control the charge and discharge current and voltage of the battery to ensure the safe operation of the battery and extend its service life
Intelligent monitoring: real-time monitoring of the status and performance parameters of the battery, such as battery power, temperature, internal resistance, and provide alarm function, timely detection of abnormal conditions
Data exchange: The speed of data exchange with external equipment is fast, which meets the needs of industrial automation systems for data processing
System bus connection: It is possible to exchange data with various I/O modules, special function modules, communication modules, etc. installed on the substrate through the system bus
Miniaturized design: Optimize data exchange time and shorten PLC scanning time

In addition, the DSSB140 48980001-P is responsible for monitoring the operating status of each battery in the battery energy storage unit to ensure the safe and reliable operation of the battery energy storage unit. The battery management system (BMS) can monitor and collect the state parameters of the energy storage battery in real time, and carry out necessary analysis and calculation on the relevant state parameters to obtain more system state evaluation parameters. According to the specific protection control strategy, the effective control of the energy storage battery body is realized to ensure the safe and reliable operation of the entire battery energy storage unit

The DSTC175 57310001-KN is a channel temperature module manufactured by ABB with the following features and application scenarios:
Multi-channel control: The module can connect a multi-channel digital temperature sensor to realize the acquisition and control of multi-channel temperature signals, improve the flexibility and efficiency of the system
High-precision measurement: With high-precision temperature measurement capabilities, it can accurately reflect temperature changes, reduce errors, and ensure the reliability of data
Flexible connection mode: Support a variety of connection modes, such as direct connection or through the bus connection, convenient for users to choose according to actual needs
Easy to program and configure: Provides a friendly user interface and a variety of programming interfaces, enabling users to easily program, configure and control, reducing the difficulty of operation
High reliability: The use of high-quality components and materials, through strict quality control and testing, with high reliability and stability, to ensure long-term stable operation
Alarm function: When the temperature exceeds the set range, the module can generate an alarm to notify the operator in time to avoid potential safety risks

In addition, the DSTC175 57310001-KN also has the following technical specifications:
Power supply voltage: DC10V~32V.
Output signal: 4-20mA superimposed HART protocol digital communication (two-wire system), HART communication does not affect 4-20mA analog output.
It can be managed remotely by hand operator and PC configuration debugging software.
The internal Pt100 is used to measure the ambient temperature for thermocouple cold end compensation.
Cold end compensation accuracy: 0.5°C.
Damping: 0-32 seconds adjustable.
Data refresh rate: 4 times /S.
Stability: +0.2%/ year.
Operating temperature: -40°C to +85°C(LCD operating temperature range: -20°C to +70°C)
Dimensions: 44mm; Install DSTC175 57310001-KN Hole spacing: 33mm.
Resistance to mechanical vibration: 10~60HZ, 0.21mm sine wave.
Anti-rf interference: IEC61000-4-3, 20V/M, 80~1000MHZ
