Product introduction：

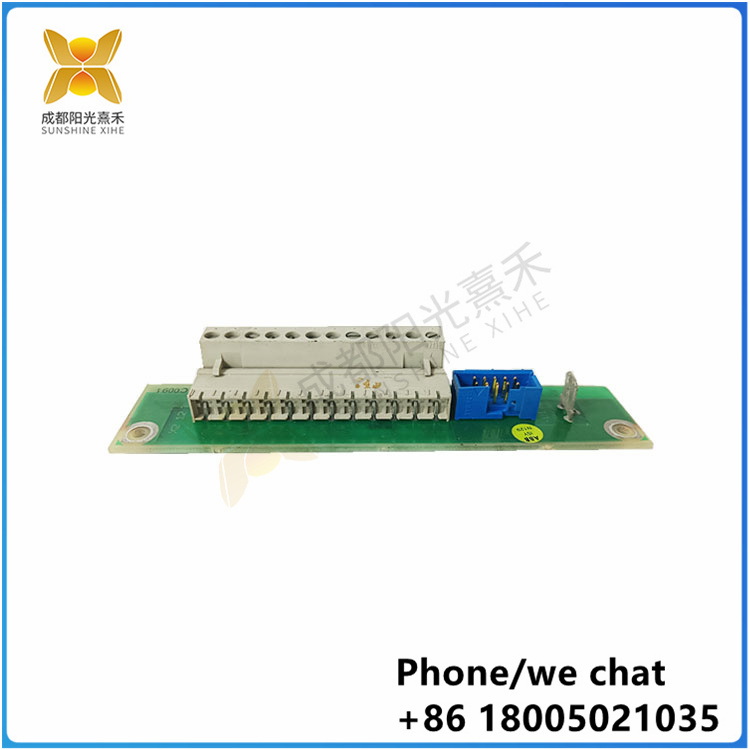

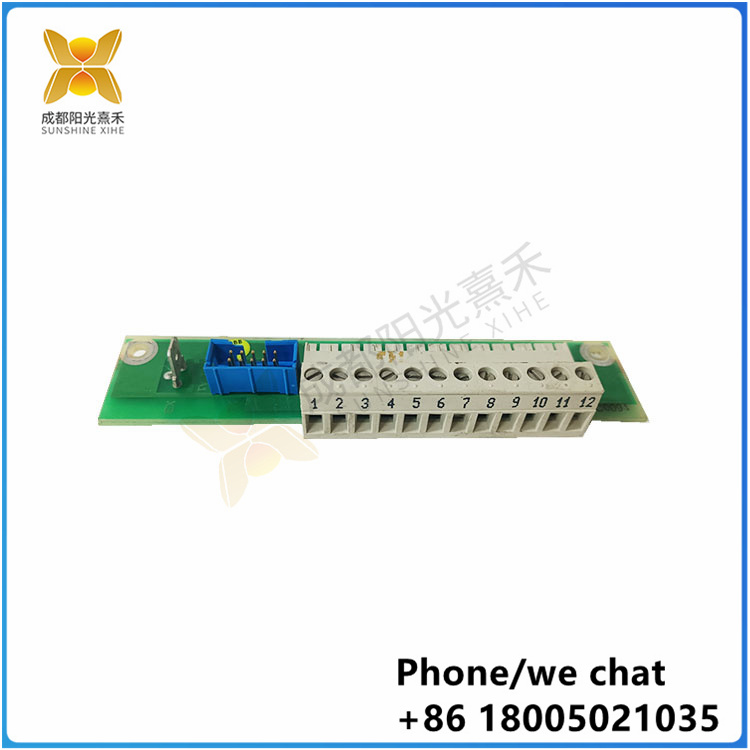

The DSTC175 57310001-KN is a channel temperature module manufactured by ABB with the following features and application scenarios:
Multi-channel control: The module can connect a multi-channel digital temperature sensor to realize the acquisition and control of multi-channel temperature signals, improve the flexibility and efficiency of the system
High-precision measurement: With high-precision temperature measurement capabilities, it can accurately reflect temperature changes, reduce errors, and ensure the reliability of data
Flexible connection mode: Support a variety of connection modes, such as direct connection or through the bus connection, convenient for users to choose according to actual needs
Easy to program and configure: Provides a friendly user interface and a variety of programming interfaces, enabling users to easily program, configure and control, reducing the difficulty of operation
High reliability: The use of high-quality components and materials, through strict quality control and testing, with high reliability and stability, to ensure long-term stable operation
Alarm function: When the temperature exceeds the set range, the module can generate an alarm to notify the operator in time to avoid potential safety risks

In addition, the DSTC175 57310001-KN also has the following technical specifications:
Power supply voltage: DC10V~32V.
Output signal: 4-20mA superimposed HART protocol digital communication (two-wire system), HART communication does not affect 4-20mA analog output.
It can be managed remotely by hand operator and PC configuration debugging software.
The internal Pt100 is used to measure the ambient temperature for thermocouple cold end compensation.
Cold end compensation accuracy: 0.5°C.
Damping: 0-32 seconds adjustable.
Data refresh rate: 4 times /S.
Stability: +0.2%/ year.
Operating temperature: -40°C to +85°C(LCD operating temperature range: -20°C to +70°C)
Dimensions: 44mm; Install DSTC175 57310001-KN Hole spacing: 33mm.
Resistance to mechanical vibration: 10~60HZ, 0.21mm sine wave.
Anti-rf interference: IEC61000-4-3, 20V/M, 80~1000MHZ

Product Number:
57310255-AV
ABB Model Name:
DSRF Type 180A
Directory description:
DSRF 180A device framework
Detailed description:
DSRF 180A CPU and I/O sub rack, single voltage regulator
Device framework for MP200 systems
dimension
Product net depth/length: 0 mm
Product height: 0 mm
Product net width: 0 mm
Net weight: 2kg
