Board Type:Input/Output Terminal Board

Functional Acronym/Abbreviation:ECTB

Number of General Purpose Form C Relays:4

Number of Trip Contact Outputs:2

Series:EX2100 Series, EX2100e Excitation Control

Use Mode:Redundant Only Mode

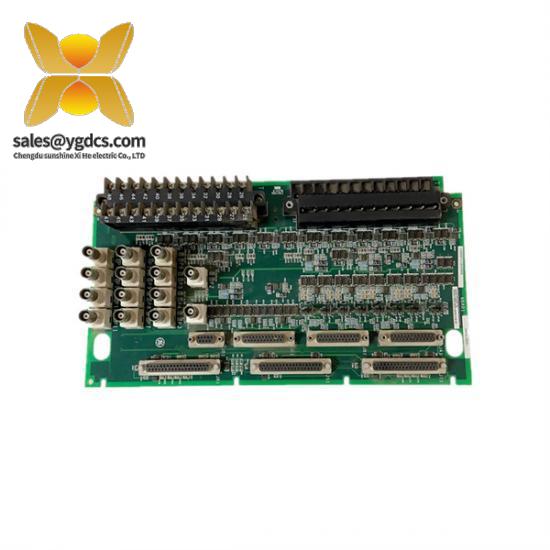

    The GE-FANUC IS200ECTBG1A exciter contact terminal board is engineered to deliver exceptional reliability and performance in power generation environments. Its robust design withstands harsh conditions, ensuring stable operation in a wide range of temperatures and humidity levels.

    Featuring a versatile input voltage range from DC 15V to DC 36V, this board offers flexibility in various power supply scenarios. With an output current rating of 20A, it efficiently manages the electrical demands of excitation processes in synchronous generators.

    The inclusion of an M12 Ethernet connector facilitates seamless integration into existing network infrastructures, enhancing connectivity and data exchange capabilities. The provision of one Ethernet port and two digital input ports enables flexible configuration and enhanced functionality.

    Manufactured with precision, the IS200ECTBG1A adheres to stringent quality standards, ensuring longevity and minimizing maintenance requirements. Its compact size (5.2 x 4.5 x 1.4 inches) and lightweight (0.2 lbs) design make it easy to install and integrate into diverse industrial settings.

    This terminal board is specifically tailored for compatibility with GE Fanuc Mark VI Speedtronic series drives and control systems, offering seamless integration and optimal performance in excitation management for synchronous generators. It is an indispensable component for maintaining system efficiency and reliability in power generation applications.
