Manufacturer:GE

Model:SR469-P5-HI-A20

Category:Motor Management Relay

RTD Inputs:Multiple RTD inputs for temperature and hottest point detection (100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, 100 ohm Platinum)

Analog Outputs:Four 4 to 20 mA analog outputs

Environmental Protection:Harsh (chemical) environment conformal coating

Phase Current Inputs:5 A phase CT secondaries

Line Voltage:90-300VDC, 70-265VAC

Frequency:48-62Hz

Overvoltage Category:II

Insulation Voltage:300V

Pollution Degree:2

Weight:Less than 15 lbs

Dimensions:Width: 12 inches, Height: 11 inches, Depth: 10 inches

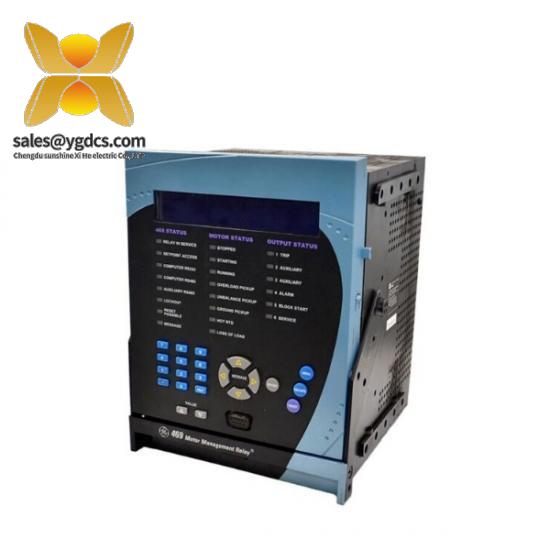

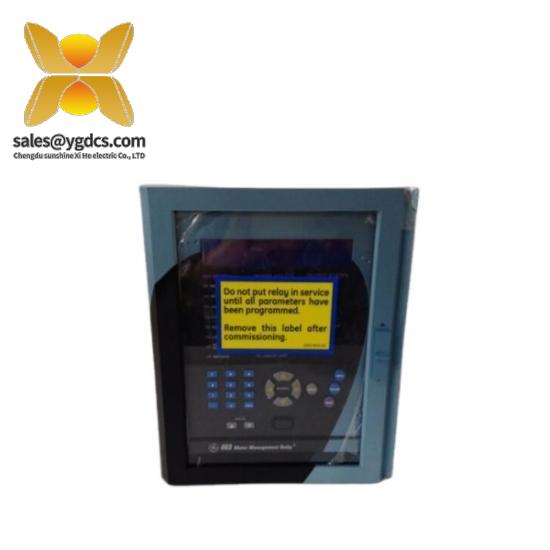

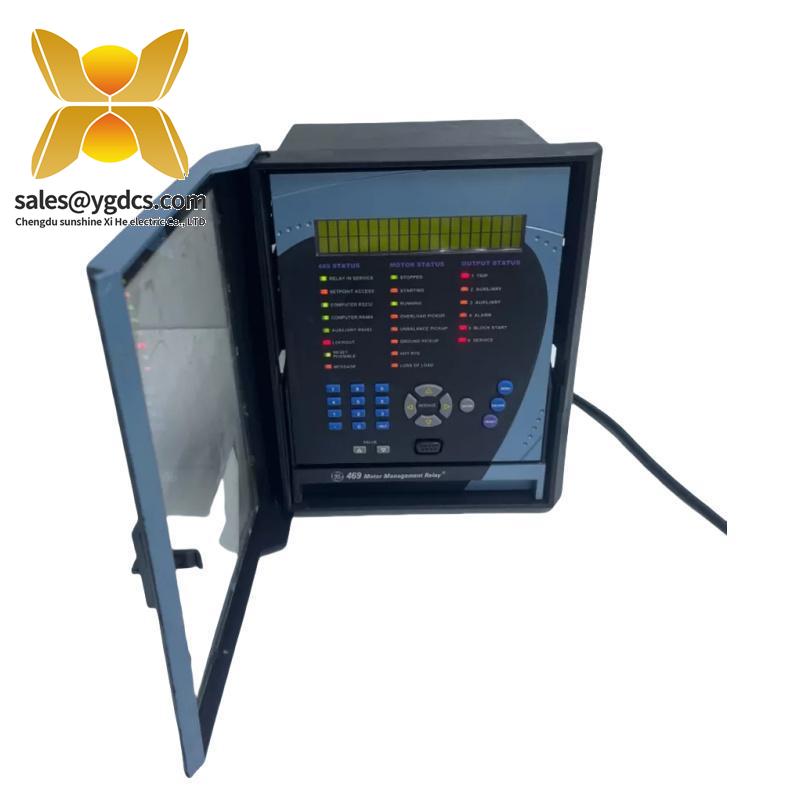

    The GE SR469-P5-HI-A20 is an advanced motor management relay designed specifically for industrial control applications. This relay is equipped with multiple RTD inputs that accurately monitor motor temperatures, ensuring optimal performance and safety. With its robust design and versatile features, it offers enhanced protection and management capabilities for motors of varying sizes.

    Key design highlights include the use of high-quality materials for reliable operation in harsh environments. The relay supports a wide voltage and frequency range, making it suitable for various industrial settings. Additionally, the four analog outputs allow for seamless integration with other control systems, providing real-time data for efficient management.

    The GE SR469-P5-HI-A20 is built with an IP65 rating when equipped with optional conformal coating, ensuring durability and longevity in challenging conditions. The front RS232, rear RS485, and auxiliary RS485 communication ports facilitate easy connectivity and data exchange.

    Designed for ease of use, the EnerVista 469 Setup software simplifies configuration and management tasks, reducing setup time and improving operational efficiency. Whether you’re managing small to large-scale motor systems, the GE SR469-P5-HI-A20 delivers exceptional performance and reliability.
