Model Number:745-W2-P5-G5-HI-A-E-H

Windings Per Phase:2

Resistant Temperature Device (RTD) Type:3 wire; 100 Ω Nickel, 120 Ω Nickel, 100 Ω Platinum

Analog Output Maximum Load:10 kΩ at 0 to 1 mA, 600 Ω at 4 to 20 mA

Maximum Continuous Voltage Output:273 V

Display Type:40 character Enhanced LCD

Dimensions:Height 9 inches, Width 7 inches, Depth 7.125 inches

Control Power Range:90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz

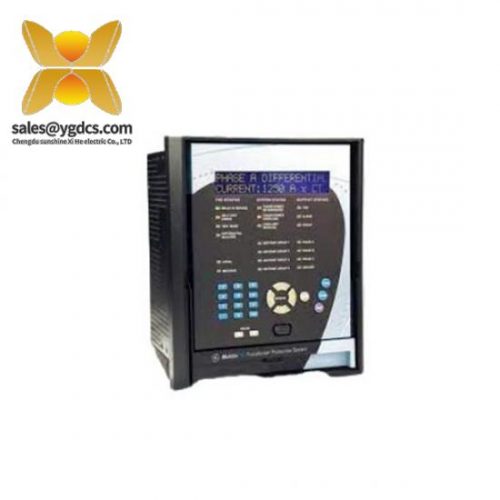

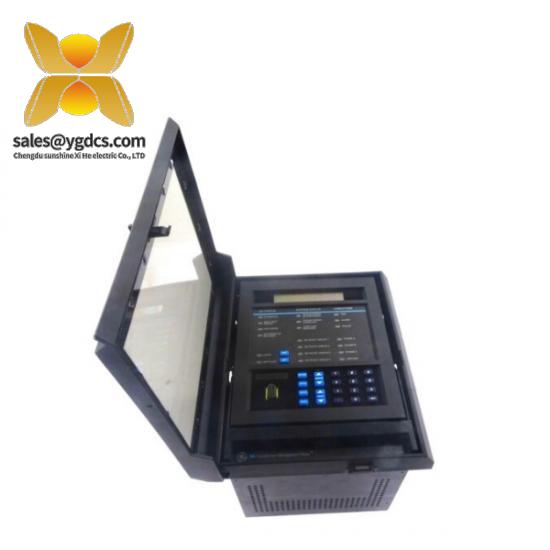

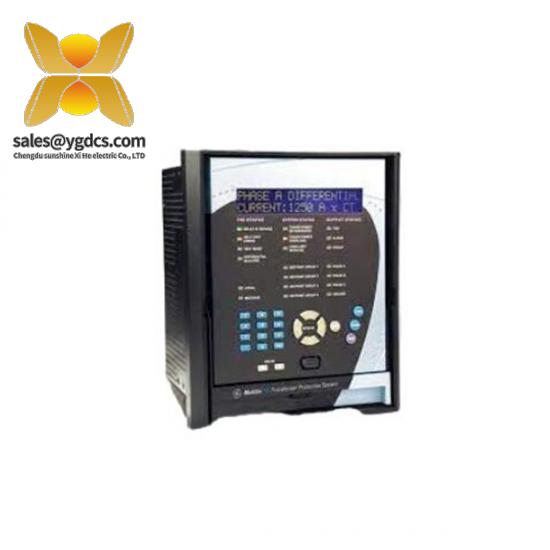

    The GE SR745-W2-P5-G5-HI Transformer Protection System is a robust and reliable device tailored for the precise management and protection of transformers, autotransformers, and reactors. This advanced system integrates adaptive features like Dynamic CT Ratio Mismatch Correction and Overexcitation Protection to enhance real-time event response. It also includes features such as Hottest Spot Monitoring and Frequency Rate-of-Change Detection to prevent potential issues before they escalate, ensuring the longevity and efficiency of your transformer systems.

    Built with user-friendly design principles, this transformer protection system minimizes the need for extraneous metering equipment and connections. Its built-in metering capabilities streamline operations, making it easier than ever to monitor and maintain your critical infrastructure. Whether you’re managing industrial plants or commercial facilities, the 745-W2-P5-G5-HI is an indispensable tool for any electrical engineer or maintenance professional.

    Experience unparalleled reliability and efficiency with the GE SR745-W2-P5-G5-HI Transformer Protection System.
