Operating Voltage:DC 12V to 24V

Current Consumption:Max. 10mA

Resolution:1μs

Pulse Width:Min. 1μs to Max. 20ms

Input Range:0V to 24V

Output Type:Open Collector

Environmental Temperature:-20°C to +85°C

Humidity:Non-condensing, 5% to 95%

Dimensions:70mm x 44mm x 22mm

Weight:Approx. 50g

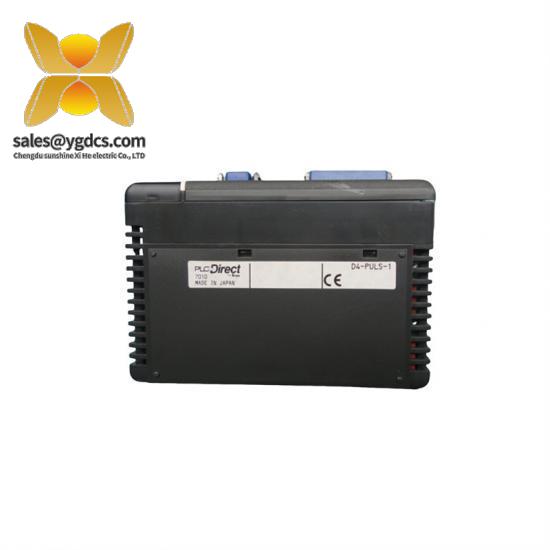

    The KOYO D4-PULS-1 module is designed for high-precision control in robotics, automation, and CNC machinery, ensuring smooth and accurate movements.

    Featuring a compact design and high-grade aluminum alloy construction, this module ensures durability and reliability under demanding industrial conditions.

    With an operating temperature range from -20°C to +70°C, it can withstand harsh environments, making it suitable for a wide variety of industrial applications.

    Equipped with an IP67 rating, the module is dustproof and waterproof, allowing for use in outdoor or dusty environments without fear of malfunction.

    Offering a resolution of 1μm and a frequency range of 1Hz to 1kHz, the module provides precise position feedback and control, enhancing the performance of mechanical systems.
