Product introduction：

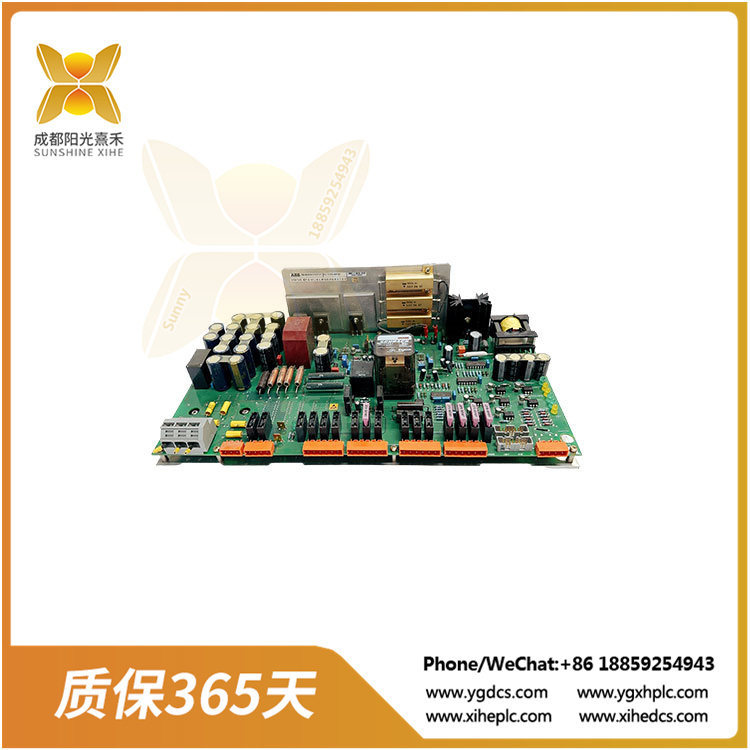

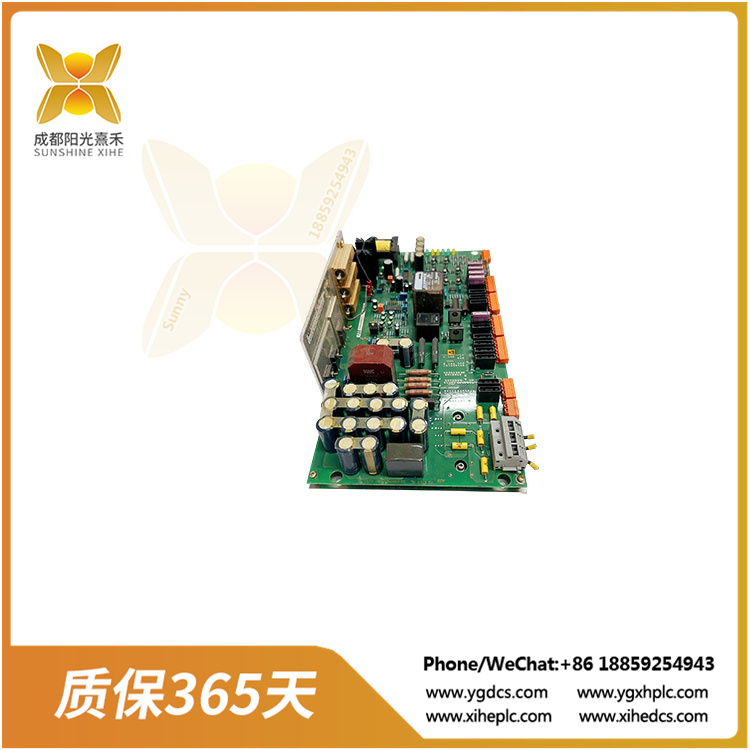

The KUC720AE01 is an intelligent controller module produced by ABB with a variety of functions and features. Here are some key information about the module:

It has a variety of input/output types, including 8 digital inputs, 8 digital outputs, 4 analog inputs and 4 analog outputs to meet a variety of control needs

The module is equipped with 2 serial interfaces (RS232, RS485) and 1 Ethernet interface to support a variety of communication protocols for easy networking communication with other devices

Use ABB’s own programming language (Control Builder), support program control and customization functions, easy for users to develop and expand

High reliability and stability for a variety of industrial automation and process control applications

The operating temperature range is -25°C to +70°C, and the supply voltage is 24V DC

The dimensions are 130mm in height, 85mm in width, 71mm in depth and about 0.5kg in weight

In addition, there is information that KUC720AE01 3BHB003431R0101 is a communication module, usually used in industrial automation and control systems to achieve data communication and information exchange between devices
. It is a kind of excitation control module, used in electric power generation field, control generator excitation system, with the whole system self-test and self-diagnosis function

The 5SHY4045L0003 is an IGCT (Integrated Gate Control Transistor) module manufactured by ABB with the following features and parameters:

It is an asymmetric integrated gate commutator thyristor with maximum load capacity IGCT technology and minimum number of parts

The module uses ACS 6000 IGCT technology, has a high buffer free off rating, and is optimized for medium frequency (3 kHz) and wide temperature range

It has high reliability and high electromagnetic immunity, with a simple control interface for state feedback AC or DC supply voltage

The module has a rated voltage (VRRM) of 4.5kV, a rated current (IR) of 1200A and a maximum on-voltage drop (Vf) of 3.1V

It has high-speed switching capability with a maximum switching speed (dI/dt) of 500A/μs and an operating temperature range of -40°C to +125°C

The 5SHY4045L0003 IGCT module integrates a GTO chip with an anti-parallel diode and a gate driver circuit, which is then connected to its gate driver in a low-inductance manner

The module is widely used in HVDC transmission and other high voltage power applications, as well as for circuit overload and short circuit protection where electrical protection is required, especially in residential and commercial buildings

time of the arrester in real time to achieve real-time and effective monitoring of the arrester operating conditions
​Current sensor: The system consists of a current sensor with a selselable cable length and a display device that can be installed separately from the arrester
​Classification and recording: SAM3.0 is able to categorize the inrush current pulses that occur into three categories and store overvoltage events using time and date information (time stamps)
​Application scenario: The system is suitable for all types of AIS and GIS gapless arresters in medium and high voltage power grids,

especially recommended for hard-to-reach installations such as switchgear, medium voltage switchboards, overhead lines, etc
​High-speed data transmission: SAM3.0 supports high-speed data transmission, ensuring real-time data exchange and communication in industrial automation systems
​High reliability: Using advanced optical fiber communication technology, it has high reliability and stability, and can operate stably in harsh industrial environments for a long time
​Flexible network topology: Support a variety of network topologies, such as star, ring, bus, etc., to adapt to different industrial automation system layout and requirements
​A variety of communication protocols: support a variety of communication protocols, such as Ethernet/IP, Profinet, Modbus, etc.,

can seamlessly integrate and communicate with a variety of industrial automation equipment and systems
​In addition, ABB SAM3.0 module also has a user interface that is easy to configure and manage, providing a friendly configuration

and management interface, users can complete the module configuration and monitoring through simple operations, facilitating system maintenance and management
SAM3.0 arrester monitoring system plays an important role in improving the real-time monitoring level of power system operation

and reducing management costs, and can provide guarantee for the safe and stable operation of power system
