Product introduction：

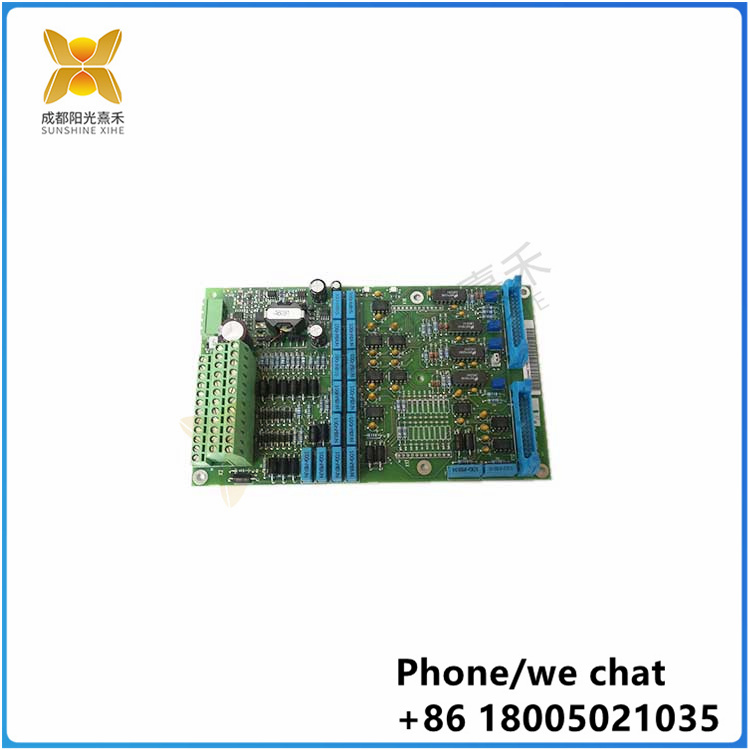

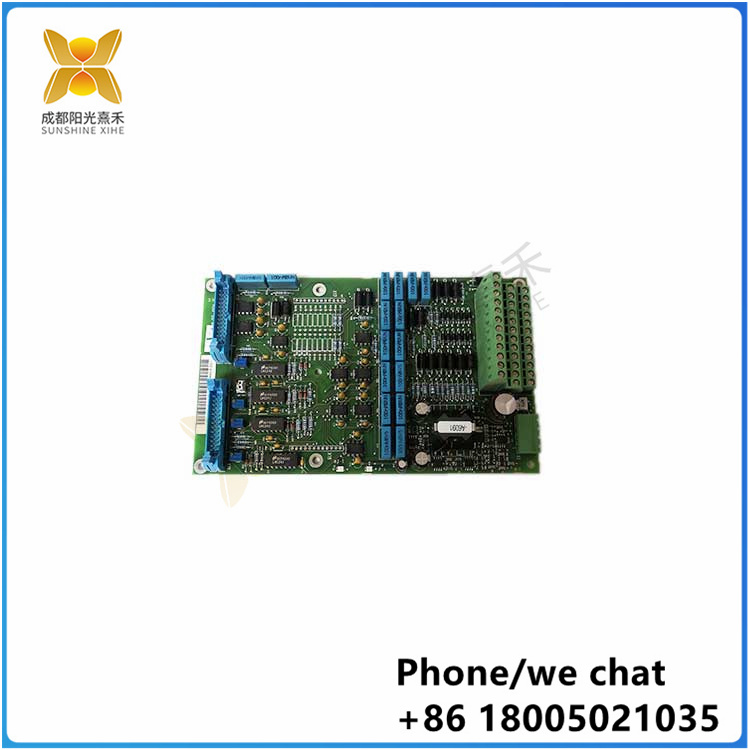

Ldmu-001 61320946C is a logic controller manufactured by ABB. According to the search results, the controller has the following features and application scenarios:

Industrial Automation Applications: This card is a digital input/output unit for industrial automation applications, designed to interface with various control systems and provide reliable, high-speed data transmission

Technical specifications: Including input voltage 24V DC, input current 0.5A, output voltage 24V DC and output current 0.5A, the overall size is 190mm × 100mm × 50mm, the weight is 0.5kg, the operating temperature range is -20℃~ +55℃, the storage temperature range is -40℃~ +70℃. Humidity 5% to 95%(non-condensing)

System 800xA integration: Part of ABB’s System 800xA, the controller supports new versions of System 800xA, including advanced alarm management capabilities for increased operator efficiency, improved engineering and change management, and performance enhancements such as the PM891, a new member of the AC800M controller family. The controller has three times the clock rate and four times the memory of its predecessor

ABB 216NG63A Thyristor Rectifier (SCR) : This is a high-performance thyristor module designed for a variety of industrial applications, providing reliable and efficient power control. Product parameters include:
Rated voltage: 600V
Rated current: 216A
Grid trigger current: 63mA
Gate trigger voltage: 1.5V
Forward voltage drop: 1.6V
Repeat peak reverse voltage: 600V
Surge current rating: 2.2kA
Type: SCR
Package: TO-200AB
Installation method: stud type
Operating temperature: -40℃~ 125℃
RoHS Compliant: Yes “We offer you a global supply of automated parts at your fingertips, ensuring that manufacturers around the world can avoid unnecessary downtime and continue to do what they do best to make our world possible

ABB 216VC62A PLC module: This is a high-performance programmable logic controller module designed for industrial automation applications. It has the following features:
Model: 216VC62A
Input voltage: 24V DC
Number of input channels: 16
Number of digital outputs: 16
Communication interface: Ethernet, RS485, USB
Size: 120mm × 90mm × 75mm
Operating temperature: -20℃~ 60℃
Programming language: IEC 61131-3
Memory Capacity: 64kb This module offers advanced functionality and reliability for a wide range of control system requirements

The BB 216EA61b HESG324015R1/K is a digital output module manufactured by ABB with the following features:
The module has 16 digital output channels, which can convert the received digital signal to the output signal
The output type is A digital signal with an output voltage range of 24 V DC and an output current range from 0.1 A (minimum) to 2 A (maximum).
Each channel is equipped with individual fuses to provide overload and short circuit protection.
The protection level is IP20 and the Profibus DP bus interface is used for communication.
Operating temperature range is -25 ° C to +60 ° C, storage temperature range is -40 ° C to +85 ° C, humidity range is 5% to 95% (non-condensing).
The module measures 71.5 x 124 x 73 mm and weighs approximately 230 grams

The model number of ABB communication module 216AB61-HESG324013R0100-HESG435572P1 supports PROFIBUS DP, PROFINET, EtherNet/IP, Modbus TCP and other communication protocols. Transmission rate up to 100 Mbps, provides Ethernet, RS-232, RS-485 and other interfaces, compatible with ABB AC500S series controllers
