Manufacturer:M-System Co., Ltd.

Model:MD2202-D32-X-P

Type:High Precision Industrial Control Module

Input Range:±10V

Output Range:4-20mA

Accuracy:±0.05%

Response Time:≤1ms

Operating Temperature Range:-40°C to +85°C

Power Supply:24V DC ±10%

Communication Interface:RS485, Modbus RTU

Protection Rating:IP67

Weight:0.5kg

Dimensions:100mm x 70mm x 30mm

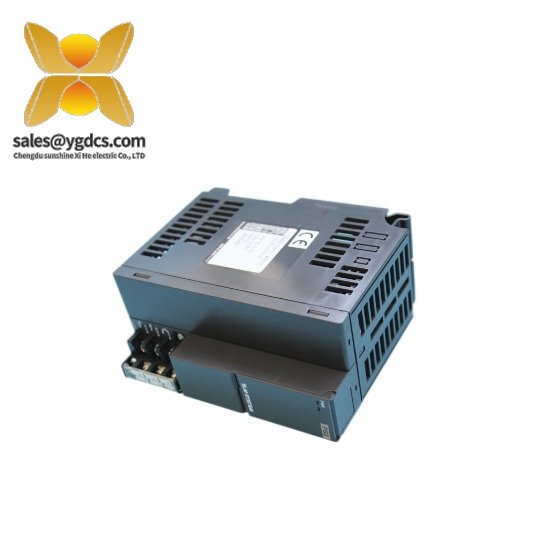

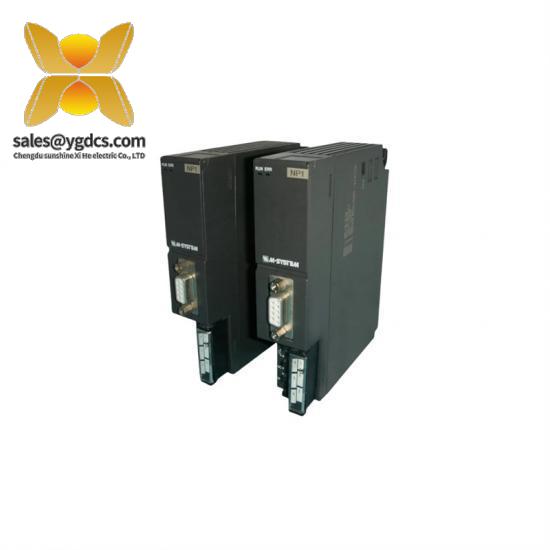

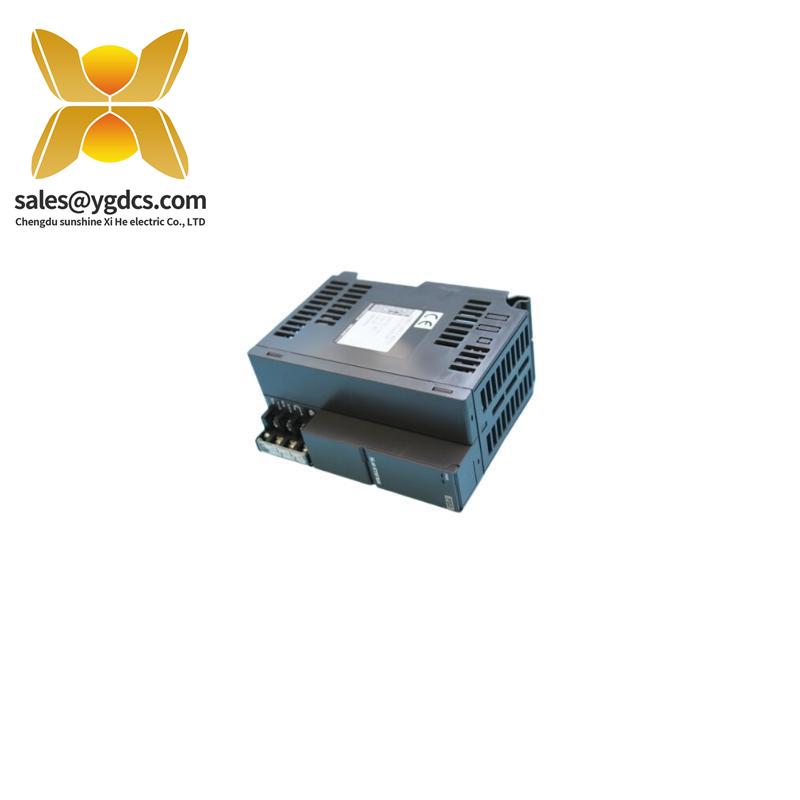

    The M-System MD2202-D32-X-P Digital Input Module is specifically engineered for high-performance industrial applications. Its robust design ensures reliable operation even under challenging environmental conditions.

    This module features 32 independent channels, each capable of processing signals at speeds up to 100μs per channel. This allows for quick and accurate data acquisition from a wide range of sensors and devices.

    With its wide input voltage range of 10-30VDC, the MD2202-D32-X-P can easily interface with various sensor types without the need for additional signal conditioning equipment.

    Equipped with RS485 communication interface, this module supports seamless integration into existing control systems. The built-in power supply operates on 24VDC, ensuring compatibility with most industrial power sources.

    Designed to withstand extreme temperatures ranging from -20°C to +70°C, the MD2202-D32-X-P is suitable for deployment in harsh environments. Additionally, it offers excellent resistance to humidity, making it ideal for use in wet or dusty conditions.
