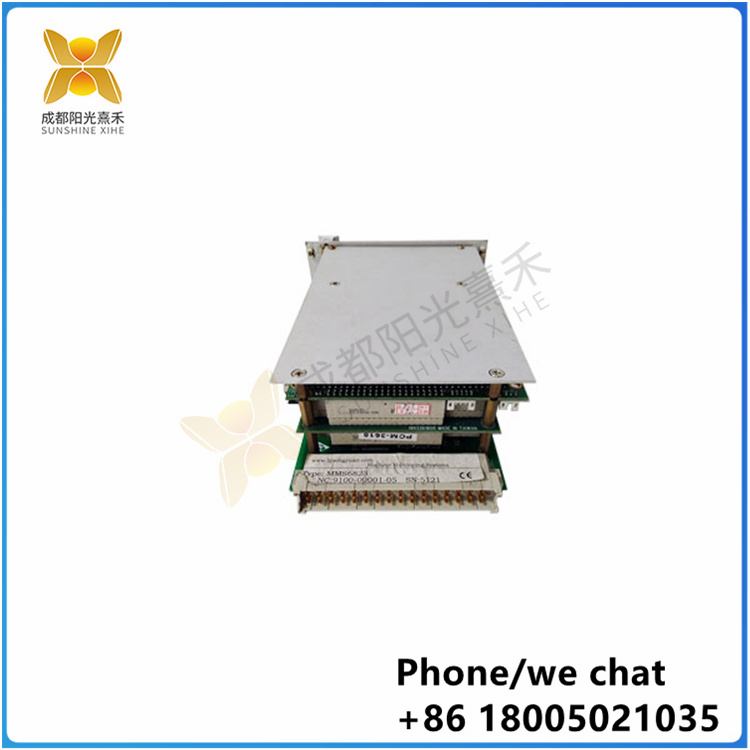

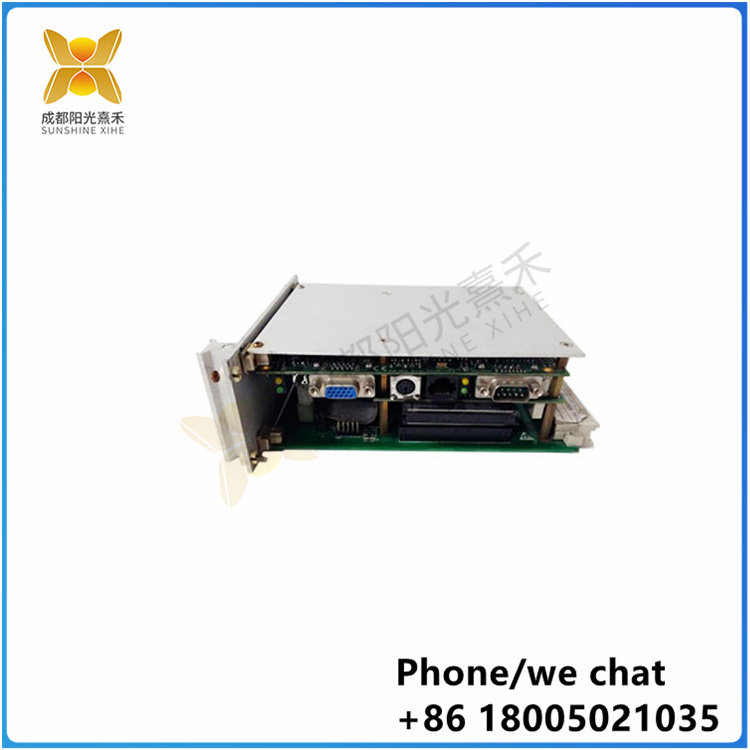

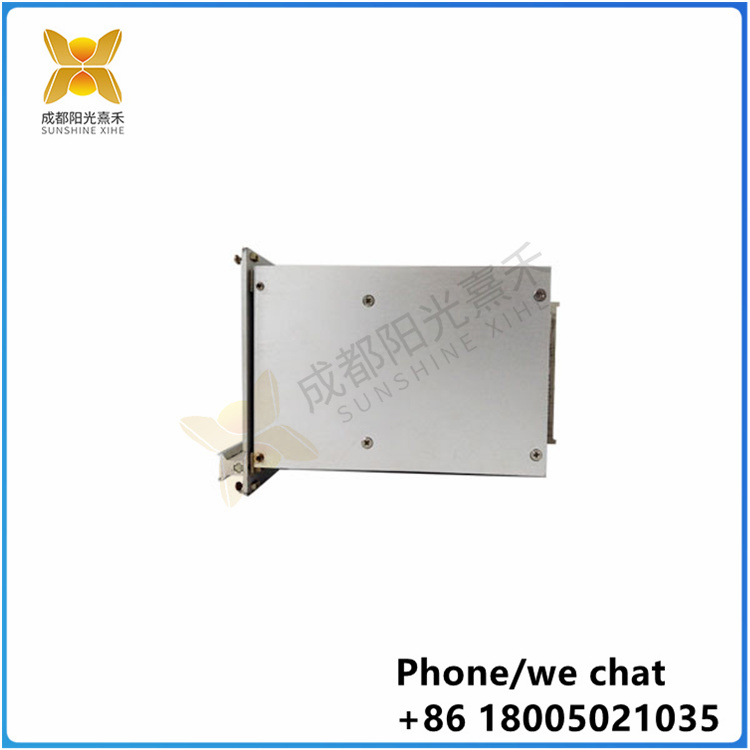

MMS6823 is a rotating machinery vibration monitoring data acquisition and communication module produced by EPRO. It has a variety of functions and is suitable for real-time acquisition and analysis of rotating machinery vibration data. Here are some of the key features and parameters of the module:
Measurement channels: 4 channels, enabling simultaneous monitoring of multiple parameters.
Measurement range: Acceleration 0.005-100g, velocity 0.01-100mm /s, displacement 0.001-10mm.
Sampling frequency: up to 25.6 kHz to ensure high precision data acquisition.
Accuracy: ±2%, to ensure the accuracy of monitoring data.
Storage capacity: 8 GB, providing ample data storage space.
Communication interface: Support Ethernet and RS-485, easy to communicate with a variety of systems.
Operating temperature: -20 °C to 70 °C, suitable for various industrial environments.
Protection grade: IP65, with good dustproof and waterproof performance.
Size and weight: 160 mm x 110 mm x 60 mm, weight is 1 kg
The MMS6823 accesses the connected MMS6000 through the RS485 bus, converts the received data to MODBUS or TCP/IP, and outputs the data through the RJ45 interface. It can also configure the connected MMS6000 modules
In addition, the MMS6823 has electrical isolation, continuous self-test and linear correction capabilities to more accurately reflect the operating state of the rotating machinery
The module uses a standard 19 “frame module with 8 RS485 input and data output modes, including MODBUS RTU/ASCII and Ethernet TCP/IP
MMS6823 module is widely used in pump, fan, compressor, bearing, motor, gear box and other rotating machinery vibration monitoring, suitable for petrochemical, electric power, steel, paper, water conservancy, railway and other fields
