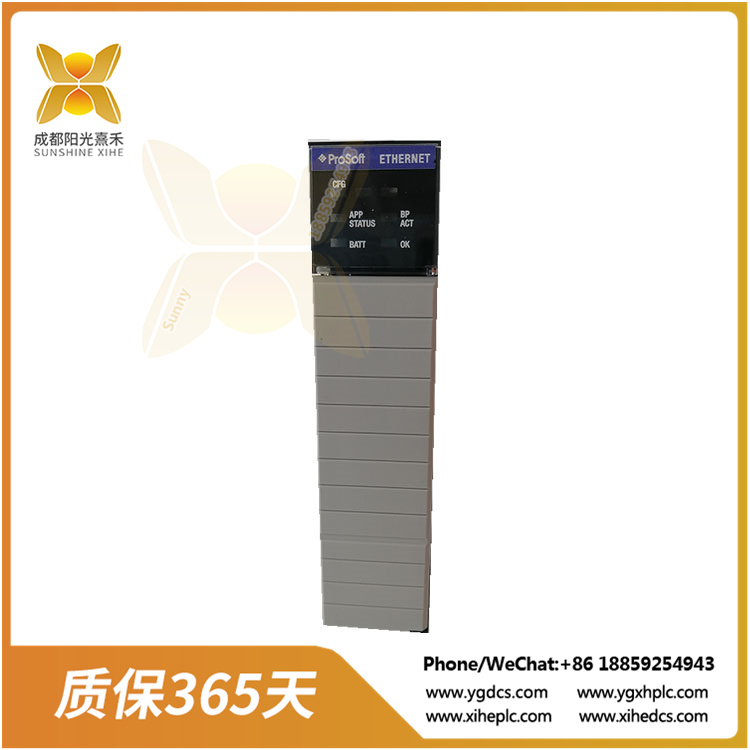

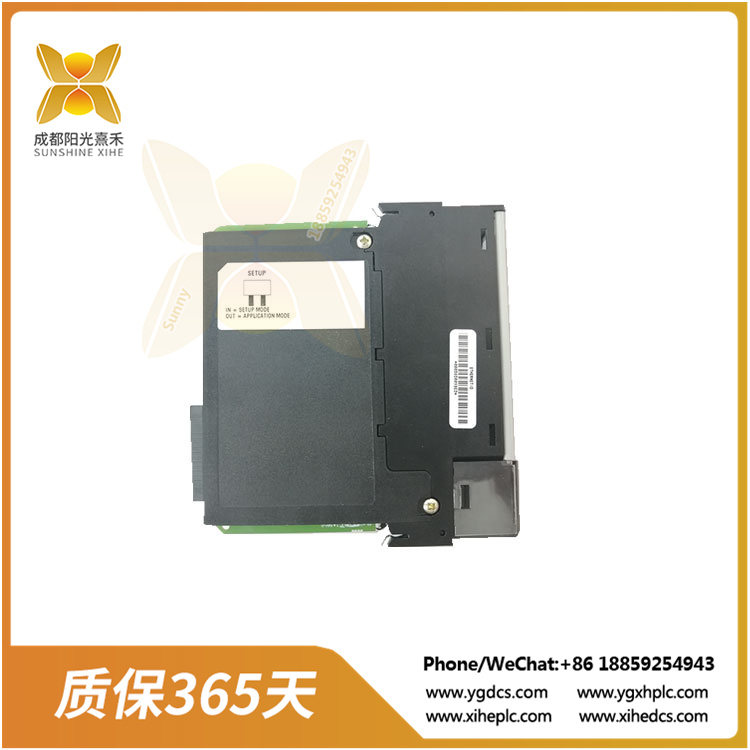

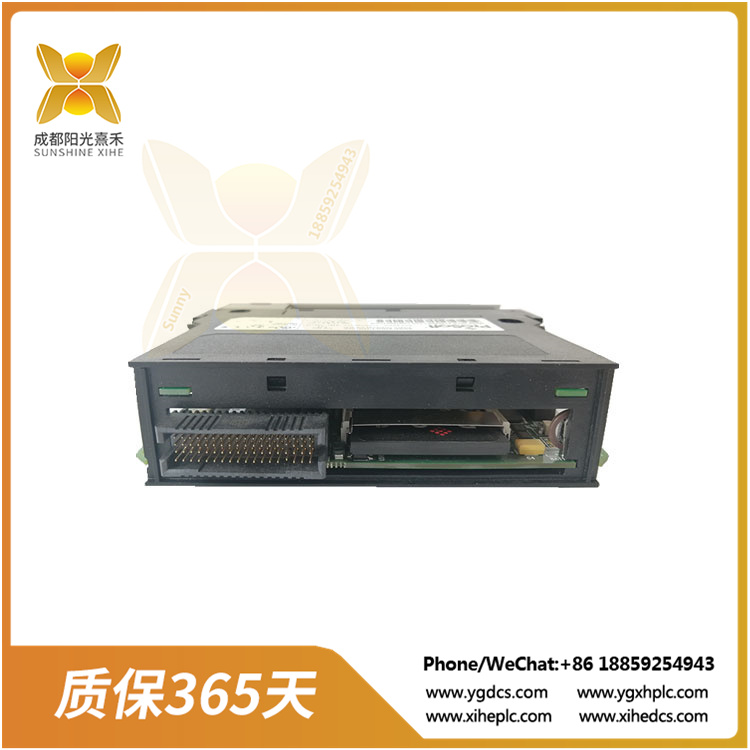

The PROSOFT MVI56-MNETR is a server-enhanced network interface module manufactured by ProSoft Technology and designed for remote rack applications in industrial automation systems. It supports the Modbus TCP/IP protocol and allows Rockwell Automation ControlLogix processors to connect to Modbus compatible devices.

The features of this module include:
Supports high-speed data transmission.
Supports local and remote configuration and diagnosis through the Ethernet port of the module.
Supports CIPconnect technology for bridge over Rockwell Automation ControlNet and EtherNetIP networks.
Built-in web server for easy access to module documentation and sample program files.
Optimize the transfer of data between the module and the ControlLogix processor using reduced input/output (I/O) data image block sizes.
Supports up to 10 Modbus TCP/IP network servers and 10 MNET network servers.
Suitable for remote rack applications, especially those using ControlNet or EtherNet/IP process networks.

The technical specifications of the MVI56-MNETR include:
Power Supply: 800 MA current at 5V DC, 3 mA current at 24V DC.
Interfaces: 10/100 Base-T connector, RJ 45 connector and LED indicator.
LED indicator function: display battery status, processing status and application status.
Operating temperature: 0 to 60 degrees Celsius (non-condensing humidity environment).
Size: 13.6 cm × 8.9 cm × 3.1 cm.
Weight: 150g.
The MVI56-MNETR module is widely used in industrial automation, process control, building automation, energy management, and data acquisition and monitoring, especially for scenarios requiring remote rack applications
