Product introduction：

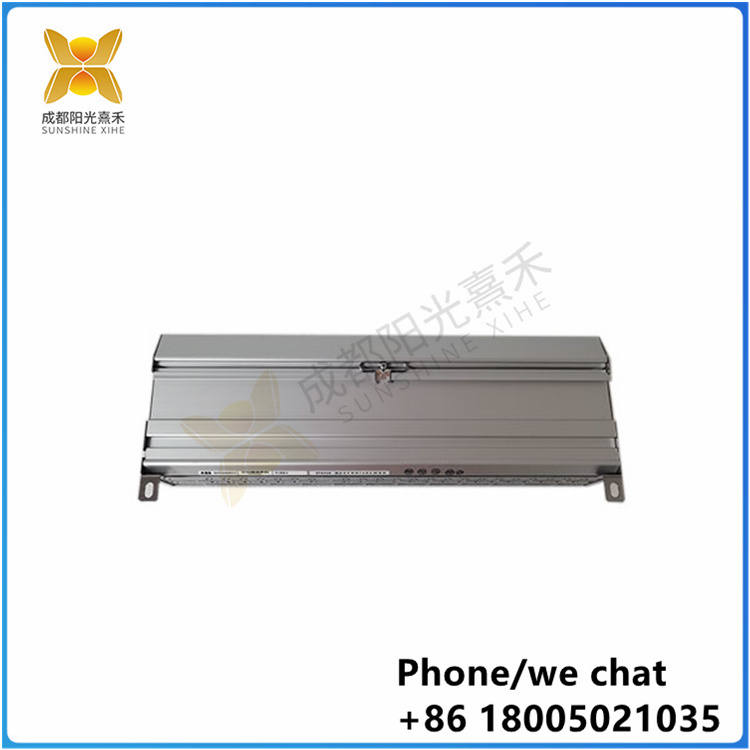

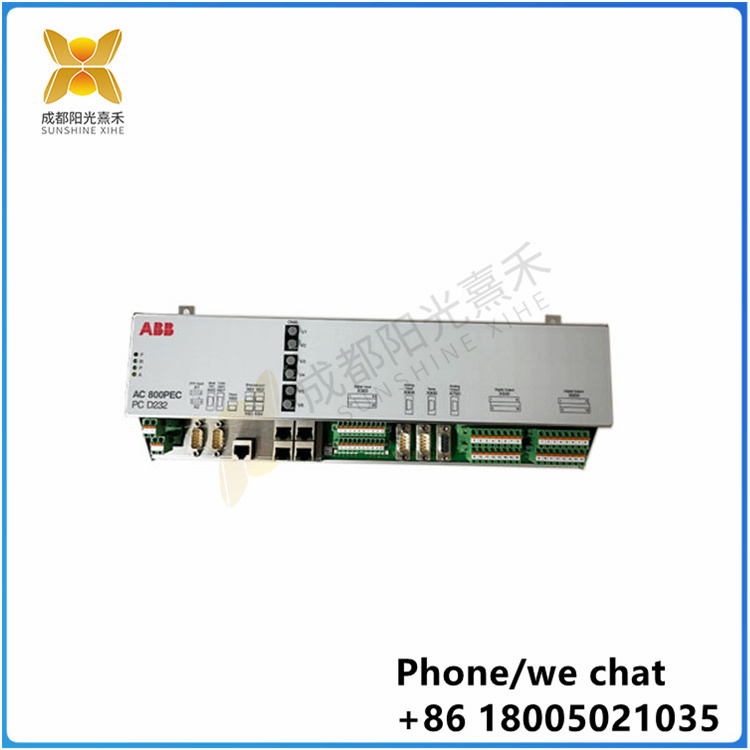

PCD232A 3BHE022293R0101 May have the following functions and features:
Excitation current control: It can precisely control the size and waveform of the excitation current to meet the operation needs of the generator.
Voltage and reactive power control: By adjusting the excitation current, control the output voltage and reactive power of the generator to ensure the stable operation of the power system.
Fault monitoring and protection: with the fault monitoring function, it can detect various faults of the excitation system, and take corresponding protective measures to prevent the expansion of faults affecting the entire power system.
Communication interface: Usually has a communication interface, such as Ethernet or serial communication interface, in order to communicate with the superior monitoring system or other equipment to achieve remote monitoring and control.
Flexible configuration: Support a variety of control algorithms and parameter Settings, can be flexibly configured according to different generator and power system requirements

The fault diagnosis process of ABB PCD232A 3BHE022293R0101 control module usually includes the following steps:
Check module indicators: First check the indicator status on the control module to determine if there are any obvious hardware problems or fault codes displayed
Check the fault code: If the module displays the fault code, check the corresponding user manual or technical support document to understand the specific meaning of the code
Check input and output signals: Confirm that all input and output signals are normal, including voltage, current, temperature and other sensor signals
Communication test: Test whether the communication interface of the module works properly to ensure that the communication with the superior monitoring system or other devices is correct
Software Diagnostics: Diagnostics are performed using professional software tools from ABB that provide more in-depth fault analysis and solutions
Hardware inspection: If the software diagnosis does not resolve the problem, further inspection of the hardware components, including the circuit board and connections, may be required

UAD142A01 3BHE012551R0001″ is an extended output power board produced by ABB. The details are as follows:
Purpose: The power supply board is mainly used to provide additional power output, usually used in industrial automation and control systems, to provide DC or AC power required for other devices or modules in the system

Features:
Provide efficient and stable power output.
Allows users to add additional power output as needed, supporting greater system expansion.
Supports multiple power configuration options such as output voltage, current, and power.
It is rigorously tested and verified to ensure stable operation and reliability in harsh industrial environments.
With standard interfaces and connections, modular design simplifies the maintenance and upgrade process

Technical parameters:
Rated voltage: DC 24V.
Rated current: 60A.
Output power: 1440W.
Efficiency: greater than 90%.
Operating temperature range: -40°C to +70°C.
Protection level: IP20.
Comply with IEC certification standards

Technical parameters:
Model: UFD203A101
Serial number: 3BHE019361R0101
Manufacturer: ABB
Signal type: including analog, digital, PWM, etc
Control accuracy: high
Dynamic performance: Fast response
Interface type: Standard interface, such as DIN rail mounting
